UBA2071AT

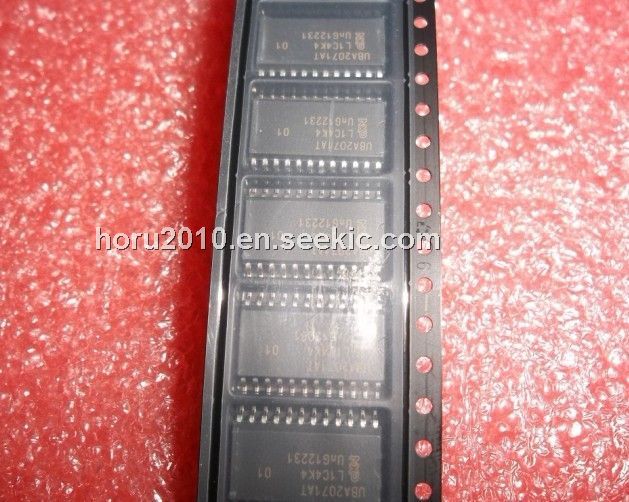

UBA2071AT, Half bridge control IC, SOP, 30 to 36Ω, 14V, NXP Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.62~1.94 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9 :	1.94 / Piece
10 ~ 100 :	1.62 / Piece

PartNumber:: UBA2071AT

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-10

From Other Seller

Part Number:UBA2071AT
US $1.62 - 1.94
Quantity:

piece

Product Summary

The UBA2071AT is a Half bridge control IC for CCFL backlighting. The UBA2071AT is a high voltage IC intended to drive Cold Cathode Fluorescent Lamps (CCFLs) or External Electrode Fluorescent Lamps (EEFLs) for backlighting applications. They can drive a half bridge circuit made up of two NMOSFETs with a supply voltage of up to 550 V, so the inverter can be supplied directly from a 400 V PFC bus. The UBA2071AT is designed to be supplied by a fixed 12 V supply. It has a lower supply start voltage and no supply clamp. The applications of the UBA2071AT include LCD-backlighting, including LCD-TV and LCD-monitor applications. The IC is intended to drive and control a half bridge inverter with resonant load circuit for CCFLs, but can also drive an array of External Electrode Fluorescent Lamps (EEFLs).

Parametrics

UBA2071AT absolute maximum ratings: (1)Rref(IREF) reference resistance on pin IREF: 30 to 36Ω; (2)SR slew rate on pins FS, GH, and SH: -4 to +4 V/ns; (3)Tamb ambient temperature: -25 to +100℃; (4)Tj junction temperature: -25 to +125℃; (5)Tstg storage temperature: -55 to +150℃; (6)VSH voltage on pin SH: 550 V; (7)VVDD voltage on pin VDD: 14 V.
