Product Summary

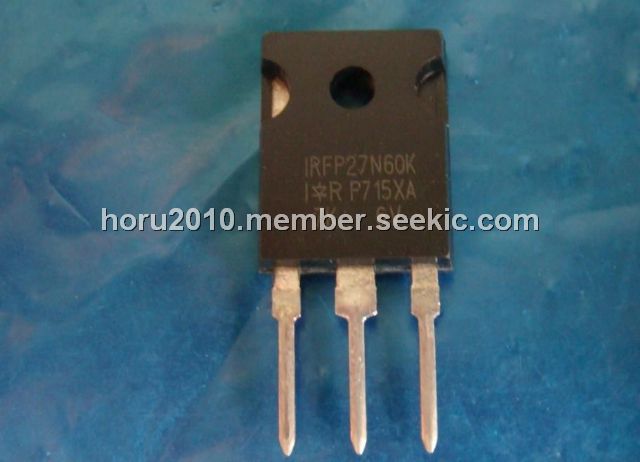

The IRFP27N60KPBF is a HEXFET Power MOSFET.

Parametrics

IRFP27N60KPBF absolute maximum ratings: (1)ID: 27A; (2)ID: 18 A; (3)IDM: 110A; (4)PD: 500 W; (5)Linear Derating Factor: 4.0 W/℃; (6)VGS Gate-to-Source Voltage: 30 V; (7)dv/dt Peak Diode Recovery dv/dt: 13 V/ns; (8)TJ Operating Junction and: -55 to + 150℃; (9)Soldering Temperature, for 10 seconds: 300℃.

Features

IRFP27N60KPBF features: (1)Low Gate Charge Qg results in Simple Drive Requirement; (2)Improved Gate, Avalanche and Dynamic dv/dt Ruggedness; (3)Fully Characterized Capacitance and Avalanche Voltage and Current; (4)Enhanced Body Diode dv/dt Capability.

Diagrams

IRFP27N60KPBF test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFP27N60KPBF
IRFP27N60KPBF
Vishay/Siliconix
MOSFET N-Chan 600V 27 Amp
Data Sheet
0-1: $4.49
1-10: $3.68
10-100: $3.32
100-250: $3.05
