Product Summary

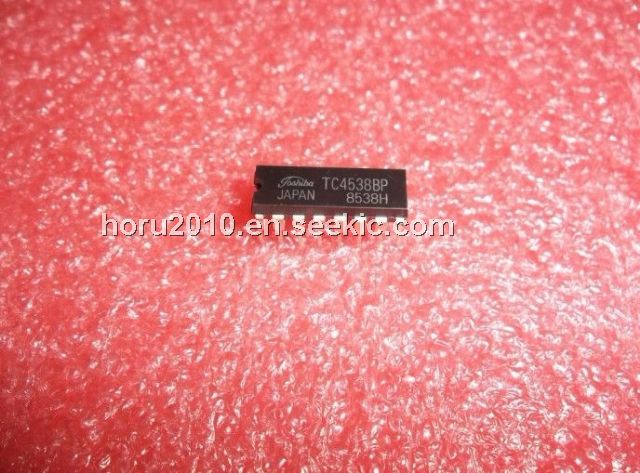

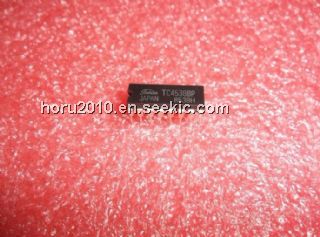

The TC4538BP is a dual precision retriggerable / resetiable monostable multivibrator. The trigger operation of the TC4538BP can be made at either the leading or trailing edge by 2 inputs of A and B. Since the output monostable pulse width is decided by time constant of the external reistor (Rx) and the external capacitor (Cx), it becomes possible to set a broad range of output pulse widths.
Parametrics
TC4538BP absolute maximum ratings: (1)DC Supply Voltage VDD: Vss- 0.5 to Vss+ 20 V; (2)Input Voltage VIN: Vss- 0.5 to VDD + 0.5 V; (3)Output Voltage VOUT: Vss- 0.5 to VDD + 0.5 V; (4)DC Input Current IIN: ±10mA; (5)Power Dissipation PD: 300 (DI P)/ 180 (SOlC) mW; (6)TOepmerpaetrinagture Range To pr: -40 to 85℃; (7)Storage Temperature Tstg :-65 to 150℃.
Features
TC4538BP feature: (1)twouT=10ms±5% (at Rx=100kΩ,Cx=O.1μF,VDD=10V).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC4538BP |
Other |
|
Data Sheet |
Negotiable |
|
||||
