Product Summary
The LT1464CS8 is the first micropower op amp (200mA max per amp) to offer picoampere input bias currents (500fA typ) and unity-gain stability for capacitive loads up to 10nF. The output can swing a 10k load to within 1.5V of either supply, just like op amps that require an order of magnitude more supply current. This unique combination of performance makes the LT1464CS8 ideal over a wide range of input and output impedances.
Parametrics
LT1464CS8 absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Differential Input Voltage: ±40V; (3)Input Current: 20mA; (4)Output Short-Circuit Duration: Indefinite; (5)Operating Temperature Range: – 40℃ to 85℃; (6)Specified Temperature Range: – 40℃ to 85℃; (7)Maximum Junction Temperature: 150℃; (8)Storage Temperature Range: – 65℃ to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1464CS8 features: (1)Input Bias Current: 20pA Max; (2)Supply Current per Amplifier: 200mA Max; (3)GaiBandwidth Product: 1MHz Typ; (4)Slew Rate: 0.9V/ms Typ; (5)Input CommoMode Range Includes Positive Rail; (6)Unity-GaiStable for C-LoadTM Up to 10nF; (7)Open-Loop Gain: 1 MillioTyp; (8)Guaranteed Specs with ±5V, ±15V Supplies; (9)Guaranteed Matching Specifications; (10)Standard Pinout: SO-8, SO-14 Package.

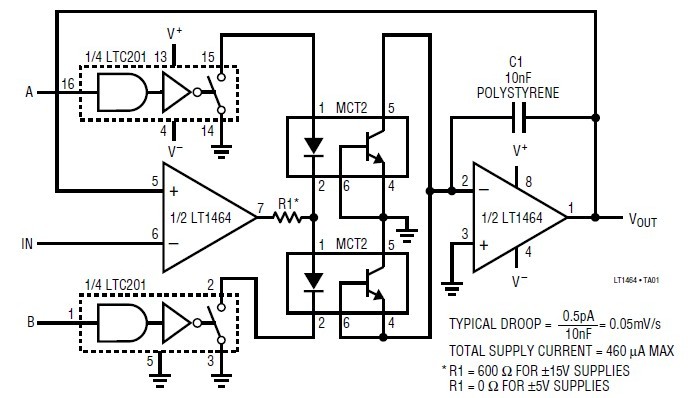

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1464CS8 |
|
IC OP-AMP JFET INPUT DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1464CS8#PBF |
|
IC OP-AMP JFET INPUT DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1464CS8#TR |
|
IC OPAMP JFET DUAL MCRPWR 8SOIC |
Data Sheet |
|
|
||||||||||
|
LT1464CS8#TRPBF |
|
IC OP-AMP JFET INPUT DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
