Product Summary

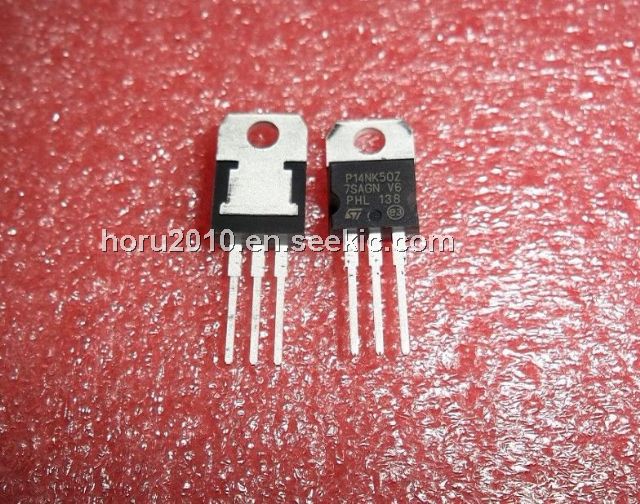

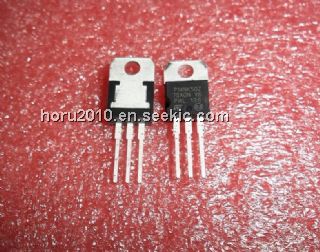

The STP14NK50Z is a superMESH power MOSFET. It is obtained through an extreme optimization of ST’s well established strip-based PowerMESH layout. In addition to pushing on-resistance significantly down, specialties is taken to ensure a very good dv/dt capability for the most demanding application.
Parametrics
STP14NK50Z absolute maximum ratings: (1)VDS Drain-source voltage (VGS = 0): 500 V; (2)VGS Gate-source voltage: ± 30 V; (3)ID Drain current (continuous) at TC = 25 ℃: 14 A; (4)ID Drain current (continuous) at TC = 100 ℃: 7.6 A; (5)IDM Drain current (pulsed): 48 A; (6)PTOT Total dissipation at TC = 25 ℃: 150 W; Derating factor: 1.20 W/℃; (7)VESD(G-S) G-S ESD (HBM C=100 pF, R=1.5 kΩ): 4000 V; (8)dv/dt Peak diode recovery voltage slope: 4.5 V/ns; (9)Tj Tstg Operating junction temperature, Storage temperature: -55 to 150 ℃.
Features
STP14NK50Z features: (1)Extremely high dv/dt capability; (2)100% avalanche tested; (3)Gate charge minimized; (4)Very low intrinsic capacitances; (5)Very good manufacturing repeatability.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STP14NK50Z |
STMicroelectronics |
MOSFET N-Ch 500 Volt 14 Amp Zener SuperMESH |
Data Sheet |
|
|
|||||||||||||
STP14NK50ZFP |
STMicroelectronics |
MOSFET N-Ch, 500V-0.34ohms Zener SuperMESH 14A |
Data Sheet |
|
|
