Product Summary

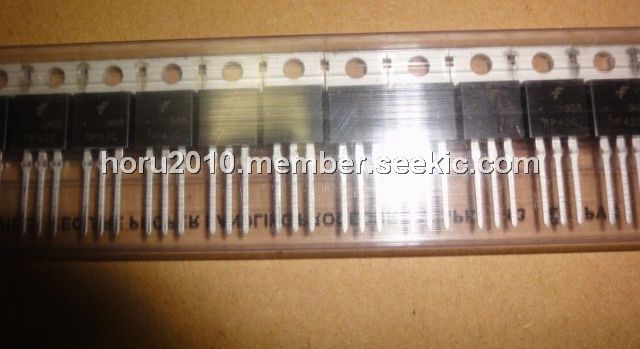

The TIP42C is a PNP Epitaxial Silicon Transistor, Medium Power.
Parametrics
Absolute maximum ratings: (1)Collector-Base Voltage : -100 V; (2)Collector-Emitter Voltage : -100 V; (3)Emitter-Base Voltage: -5 V; (4)Collector Current (DC): - 6 A; (5)Collector Current (Pulse): -10 A; (6)Base Current: -2 A; (7)Collector Dissipation (TC=25℃): 65 W; (8)Collector Dissipation (TA=25℃): 2 W; (9)Junction Temperature: 150 ℃; (10)Storage Temperature: - 65 to 150 ℃.
Features
Features: (1)Medium Power Linear Switching Applications; (2)Complement to TIP41/TIP41A/TIP41B/TIP41C.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIP42CE3 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TIP42CG |
ON Semiconductor |
Transistors Bipolar (BJT) 6A 100V 65W PNP |
Data Sheet |
|
|
||||||||||||
|
TIP42CN |
STMicroelectronics |
Transistors Bipolar (BJT) PNP 100 Volt 6 Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
TIP42CPTU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) |
Data Sheet |
Negotiable |
|
||||||||||||
|
TIP42CTU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) PNP Epitaxial Sil |
Data Sheet |
|
|
||||||||||||
|
TIP42C-S |
Bourns |
Transistors Bipolar (BJT) 100V 6A PNP |
Data Sheet |
|
|
||||||||||||
|
TIP42C-BP |
Micro Commercial Components (MCC) |
Transistors Bipolar (BJT) PNP -100V -6A 65W |
Data Sheet |
|
|
||||||||||||
|
TIP42C |
STMicroelectronics |
Transistors Bipolar (BJT) PNP Gen Pur Power |
Data Sheet |
|
|
||||||||||||
