Product Summary

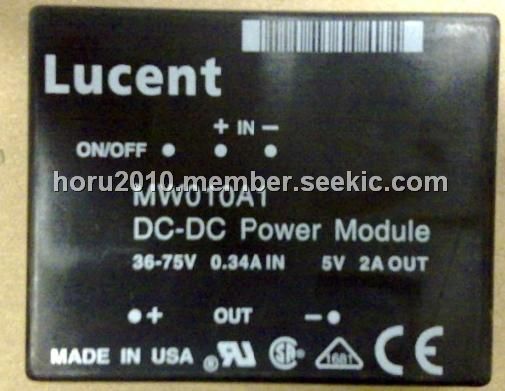

The MW010A1 power module is dc-dc converter that operates over an input voltage range of 36Vdc to 75Vdc and provide precisely regulated dc outputs. The outputs are fully isolated from the inputs, allowing versatile polarity configurations and grounding connections. The MW010A1 has maximum power ratings of 10 W at a typical full-load efficiency of 83% (80% for the MW010A).
Parametrics
MW010A1 absolute maximum ratings: (1)Input Voltage, Continuous, VI: 80V; (2)Input Voltage, Transient (2 ms), VI, trans: 100V; (3)I/O Isolation Voltage: 500V; (4)Operating Ambient Temperature, (0.30 ms–1 (60 ft./min.) natural convection), TA: –40 to 85℃; (5)Storage Temperature, Tstg: –40 to 100℃.
Features

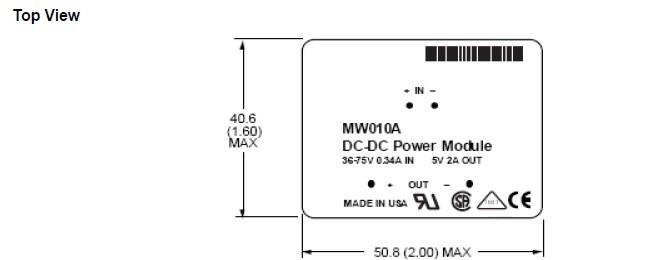

MW010A1 features: (1)Small size: 50.8 mm x 40.6 mm x 12.7 mm(2.00 in. x 1.60 in. x 0.50 in.); (2)Wide input voltage range: 36 Vdc to 75 Vdc; (3)Output current limiting, unlimited duration; (4)Output overvoltage clamp; (5)Load regulation: 0.15% max. (MW010A, B, C); (6)Line regulation: 0.10% max. (MW010A, B, C); (7)Input undervoltage lockout; (8)Input-to-output isolation; (9)No external filtering required; (10)Operating ambient temperature range: –40℃ to +85℃; (11)Meets FCC Class A requirements for radiated emissions; (12)High reliability; (13)UL Recognized, CSA? Certified, and VDE Licensed; (14)CE mark meets 73/23/EEC and 93/68/EEC directives.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MW010A1 |
![]() GE Energy (Lineage Power) |
![]() DC/DC Converters 5V 2A 10W 5-Pin |
![]() Data Sheet |
