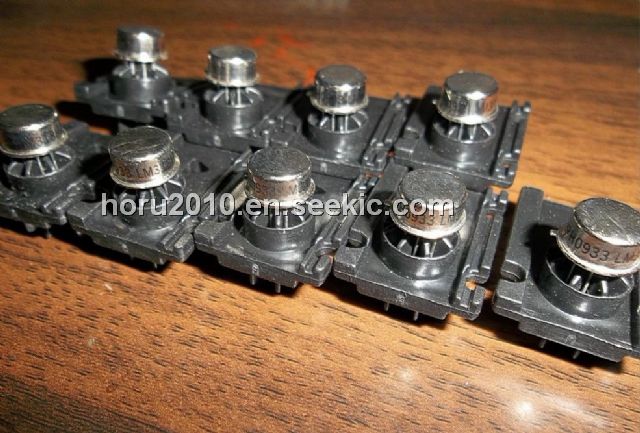

LM318H

LM318H, precision high speed operational amplifier, CAN, ±20V, 500 mW, ±10 mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.98~1.98 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 100 :	1.98 / Piece

PartNumber:: LM318H

Brand:: National Semiconductor - NS | Pack: CAN | D/C: 10+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-10

From Other Seller

Part Number:LM318H
US $1.98 - 1.98
Quantity:

piece

Product Summary

The LM318H is a precision high speed operational amplifier designed for applications requiring wide bandwidth and high slew rate. They feature a factor of ten increase in speed over general purpose devices without sacrificing DC performance. The LM318H has internal unity gain frequency compensation. This considerably simplifies its application since no external components are necessary for operation. However, unlike most internally compensated amplifier, external frequency compensation may be added for optimum performance. For inverting applications, feedforward compensation of the LM318H will boost the slew rate to over 150V/μs and almost double the bandwidth. Overcompensation can be used with the amplifier for greater stability when maximum bandwidth is not needed. Further, a single capacitor can be added to reduce the 0.1% settling time to under 1 μs.

Parametrics

LM318H absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Power Dissipation: 500 mW; (3)Differential Input Current: ±10 mA; (4)Input Voltage: ±15V; (5)Output Short-Circuit Duration: Continuous; (6)Storage Temperature Range: -65℃ to +150℃; (7)Hermetic Package: 300℃; (8)Plastic Package: 260℃.

Features

LM318H features: (1)15 MHz small signal bandwidth; (2)Guaranteed 50V/μs slew rate; (3)Maximum bias current of 250 nA; (4)Operates from supplies of ±5V to ±20V; (5)Internal frequency compensation; (6)Input and output overload protected; (7)Picompatible with general purpose op amps.
