Product Summary

The MC33167T is a high performance fixed frequency power switching regulator that contains the primary functions required for dc-to-dc converters. This MC33167T was specifically designed to be incorporated in step-down and voltage-inverting configurations with a minimum number of external components and can also be used cost effectively in step–up applications. The MC33167T consists of an internal temperature compensated reference, fixed frequency oscillator with on–chip timing components, latching pulse width modulator for single pulse metering, high gain error amplifier, and a high current output switch.

Parametrics

MC33167T absolute maximum ratings: (1)Power Supply Input Voltage, VCC: 40 V; (2)Switch Output Voltage Range, VO(switch): –2.0 to + Vin V; (3)Voltage Feedback and Compensation Input Voltage Range, VFB, VComp: –1.0 to + 7.0 V; (4)Power Dissipation, Case 314A, 314B and 314D (TA = +25℃), PD: Internally Limited W, thermal Resistance, Junction–to–Ambient, θJA: 65 ℃/W; (5)Thermal Resistance, Junction–to–Case, θJC: 5.0 ℃/W; (6)Case 936A (D2PAK) (TA = +25℃), PD: Internally Limited W; (7)Thermal Resistance, Junction–to–Ambient, θJA: 70 ℃/W; (8)Thermal Resistance, Junction–to–Case, θJC: 5.0 ℃/W; (9)Operating Junction Temperature, TJ: +150 ℃; (10)Operating Ambient Temperature: – 40 to + 85℃; (11)Storage Temperature Range, Tstg: – 65 to +150 ℃.

Features

MC33167T features: (1)Output Switch Current in Excess of 5.0 A; (2)Fixed Frequency Oscillator (72 kHz) with On–Chip Timing; (3)Provides 5.05 V Output without External Resistor Divider; (4)Precision 2% Reference; (5)0% to 95% Output Duty Cycle; (6)Cycle–by–Cycle Current Limiting; (7)Undervoltage Lockout with Hysteresis; (8)Internal Thermal Shutdown; (9)Operation from 7.5 V to 40 V; (10)Standby Mode Reduces Power Supply Current to 36 mA; (11)Economical 5–Lead TO–220 Package with Two Optional Leadforms; (12)Also Available in Surface Mount D2PAK Package.

Diagrams

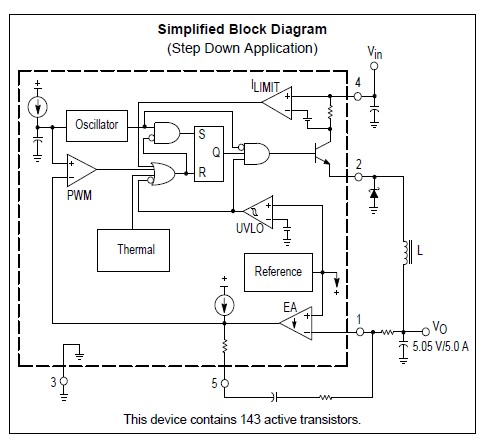

MC33167T block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

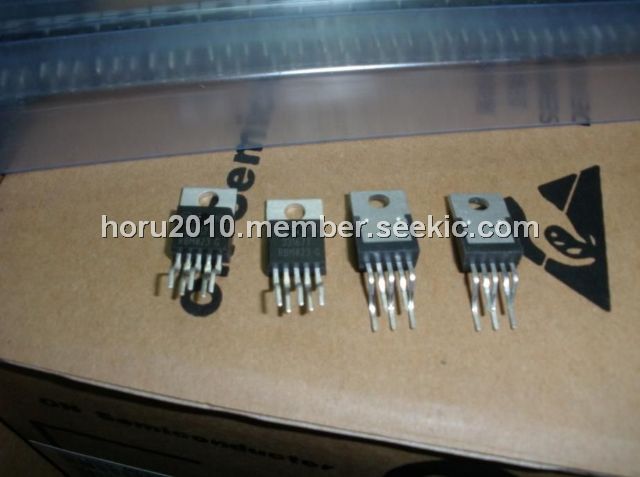

MC33167T
MC33167T

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 5A

Data Sheet

Negotiable
MC33167TG
MC33167TG

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 5A Buck/Boost/Inverting

Data Sheet

0-1: $2.20
1-25: $1.94
25-100: $1.20
100-500: $1.10
MC33167TVG
MC33167TVG

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 5A Buck/Boost/Inverting

Data Sheet

0-1: $1.90
1-25: $1.52
25-100: $1.39
100-500: $1.12
MC33167THG
MC33167THG

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 5A Buck/Boost/Inverting

Data Sheet

0-1: $1.90
1-25: $1.52
25-100: $1.39
100-500: $1.12
MC33167TH
MC33167TH

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 5A

Data Sheet

Negotiable
MC33167TV
MC33167TV

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 5A

Data Sheet

Negotiable
