Product Summary

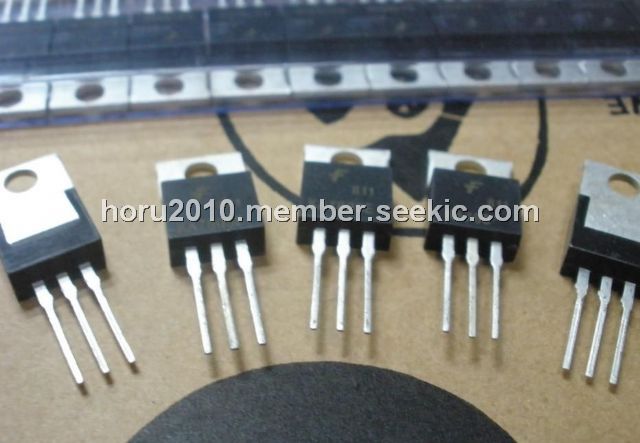

The KA7805ETU is a three-terminal positive regulator which is available in the TO-220/D-PAK package and with several fixed output voltages, making KA7805ETU useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making KA7805ETU essentially indestructible. If adequate heat sinking is provided, KA7805ETU can deliver over 1A output current. Although designed primarily as fixed voltage regulators, the KA7805ETU can be used with external components to obtain adjustable voltages and currents.
Parametrics
KA7805ETU absolute maixmum ratings: (1)Thermal Resistance Junction-Cases (TO-220): 5℃/W; (2)Thermal Resistance Junction-Air (TO-220): 65℃/W; (3)Operating Temperature Range (KA78XXE/AE/ER): 0 to +125℃; (4)Storage Temperature Range: -65 to +150℃.
Features
KA7805ETU features: (1)Output Current up to 1A; (2)Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V; (3)Thermal Overload Protection; (4)Short Circuit Protection; (5)Output Transistor Safe Operating Area Protection.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KA7805ETU |
Fairchild Semiconductor |
Linear Regulators - Standard 3-Terminal 1A Positive |
Data Sheet |
|
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
KA7805 |
Fairchild Semiconductor |
Linear Regulators - Standard DISC BY MFG 7/03 |
Data Sheet |
Negotiable |
|
|||||||||||||
KA7805A |
Fairchild Semiconductor |
Linear Regulators - Standard DISC BY MFG 7/03 |
Data Sheet |
Negotiable |
|
|||||||||||||
KA7805AE |
Fairchild Semiconductor |
Linear Regulators - Standard 3-Terminal 1A Pos Voltage Regulator |
Data Sheet |
Negotiable |
|
|||||||||||||
KA7805AETSTU |
Fairchild Semiconductor |
Linear Regulators - Standard 1A 2% Reg Short Leads |
Data Sheet |
Negotiable |
|
|||||||||||||
KA7805AETU |
Fairchild Semiconductor |
Linear Regulators - Standard 3-Terminal 1A Positive Voltage |
Data Sheet |
|
|
|||||||||||||
KA7805AETU_Q |
Fairchild Semiconductor |
Linear Regulators - Standard 3-Terminal 1A Positive Voltage |
Data Sheet |
Negotiable |
|
