Product Summary
The TDA8922BTH is a high efficiency class-D audio power amplifier with very low dissipation. The typical output power is 2 × 50 W. The TDA8922BTH is available in the HSOP24 power package and in the DBS23P through-hole power package. The amplifier operates over a wide supply voltage range from ±12.5 V to ±30 V and consumes a very low quiescent current.
Parametrics
TDA8922BTH absolute maximum ratings: (1)supply voltage: ±30 V; (2)repetitive peak current in output pin: 5 A; (3)storage temperature: -55 +150 ℃; (4)ambient temperature: -40 +85 ℃; (5)junction temperature: 150 ℃.
Features
TDA8922BTH features: (1)Zero dead time switching; (2)Advanced current protection: output current limiting; (3)Smooth start-up: no pop-noise due to DC offset; (4)High efficiency; (5)Operating supply voltage from ±12.5 V to ±30 V; (6)Low quiescent current; (7)Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL); (8)Fixed gain of 30 dB in Single-Ended (SE) and 36 dB in Bridge-Tied Load (BTL); (9)High supply voltage ripple rejection; (10)Internal switching frequency can be overruled by an external clock; (11)Full short-circuit proof across load and to supply lines; (12)Thermally protected.

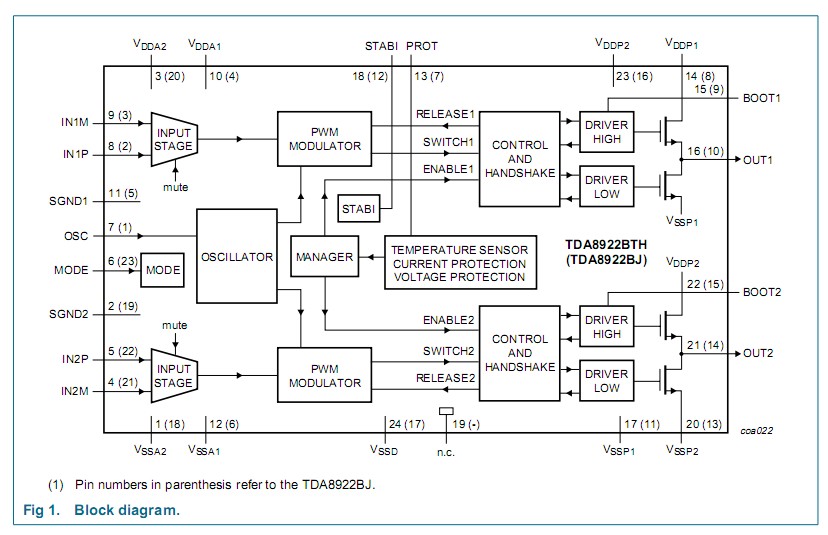

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA8922BTH/N2,118 |
NXP Semiconductors |
Audio Amplifiers 2X50W CLASSD PWR AMP |
Data Sheet |
|
|
||||||||||||||
|
TDA8922BTH-T |
NXP Semiconductors |
Audio Amplifiers 2X50W CLASSD PWR AMP |
Data Sheet |
Negotiable |
|
||||||||||||||
