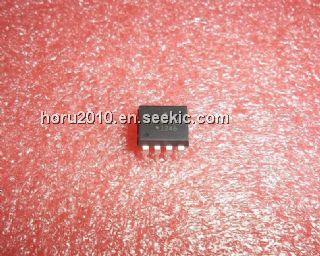

HCNW137

HCNW137, High CMR, High Speed TTL Compatible Optocoupler, DIP, 20mA, 40mW, AVAGO TECHNOLOGIES LIMITED

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.48~0.79 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9 :	0.79 / Piece
10 ~ 99 :	0.64 / Piece
100 ~ 1000 :	0.48 / Piece

PartNumber:: HCNW137

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-09

From Other Seller

Part Number:HCNW137
US $0.48 - 0.79
Quantity:

piece

Product Summary

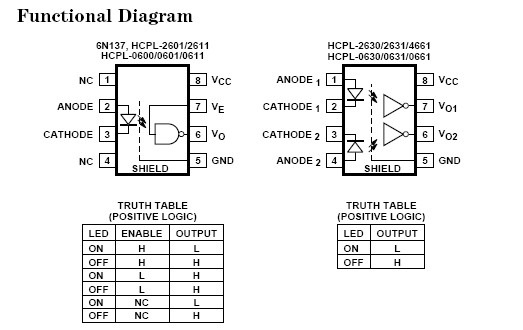

The HCNW137 is a High CMR, High Speed TTL Compatible Optocoupler. The HCNW137 is an optically coupled gate that combine a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky clamped transistor. The applications of the HCNW137 include Isolated Line Receiver, Computer-Peripheral Interfaces, Microprocessor System Interfaces, Digital Isolation for A/D, D/A Conversion, Switching Power Supply, Instrument Input/Output Isolation, Ground Loop Elimination, Pulse Transformer Replacement.

Parametrics

HCNW137 absolute maximum ratings: (1)Storage Temperature TS: -55 to 125℃; (2)Operating Temperature TA: -40 to 85℃; (3)Average Forward Input Current: 20mA; (4)Input Power Dissipation PI Widebody: 40 mW; (5)Supply Voltage VCC: 7 V; (6)Enable Input Current IE: 5 mA; (7)Output Collector Current IO: 50 mA; (8)Output Collector Voltage VO: 7 V.

Features

HCNW137 features: (1)5 kV/μs Minimum Common Mode Rejection (CMR) at VCM = 50 V for HCPL-X601/X631, HCNW2601 and 10 kV/μs Minimum CMR at; (2)VCM = 1000 V for HCPLX611/ X661, HCNW2611; (3)High Speed: 10 MBd Typical; (4)LSTTL/TTL Compatible; (5)Low Input Current Capability: 5 mA; (6)Guaranteed ac and dc Performance over Temperature: -40 to +85℃; (7)Available in 8-Pin DIP, SOIC-8, Widebody Packages; (8)Strobable Output (Single Channel Products Only); (9)Safety Approval.
