Product Summary

The FLC-100 is a Miniature fluxgate sensor with high sensitivity Measurement range ±100μT, DC to 1 kHz. The FLC-100 can be used in any application where the sensitivity and stability of conventional magnetic field sensors (Hall or MR sensors) is too low, e.g. for the measurement of the earth’s magnetic field (for navigation) or if ferrous objects should be detected at larger distances. The applications of the FLC-100 include Measurement of the earth’s magnetic field, navigation, Detection of fields from power lines, Current measurement, Distance sensors, Magnetic signatures, Vehicle detection, traffic control, Material and package inspection, Residual field measurement (shielding effectiveness).

Parametrics

FLC-100 absolute maximum ratings: (1) Meas. range: ±100μT, other ranges on request; (2) Accuracy at 20℃: ±2% ±0.3μT; (3) Operating temperature: -40 to +85℃; (4) Zero drift: ＜2nT/K; (5) Output voltage OUT+ ref. to OUT-: ±1V/50μT, max. ±5V; (6)Bandwidth: 0 to 1 kHz (-3dB); (7)DC output impedance: ＜1Ω; (8)Reference output OUT-: 2.5V ref. to supply ground (0 V); (9) Max. load between OUT+ and OUT-: ＞1kΩ, ＜100pF; (10)Noise ＜: 0.5nTRMS or 3nTPP (0.1 to 10 Hz), 150pT/√￣Hz @ 1 Hz; (11)Supply voltage: 5V ±5%; (12)Supply current: 2mA; (13) Dimensions: 44.5 mm×14 mm×5.5 mm; (14) Length of detection coils: 22 mm.

Features

FLC-100 features: (1)Output voltage proportional to magnetic field; (2)Low noise and high stability of output signal; (3)Low cost; (4)Complete miniature magnetometer; (5)Single 5 V power supply; (6)Only 2mA current consumption; (7)Simple integration into μP systems; (8)Temperature range -40 to +85℃, extended temp. range on request.

Diagrams

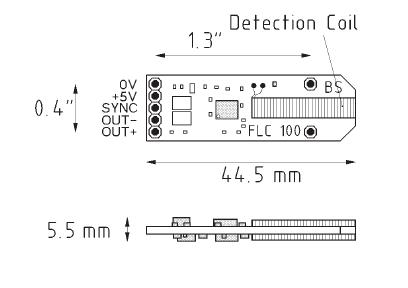

FLC-100 dimension
