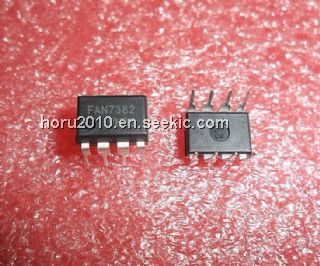

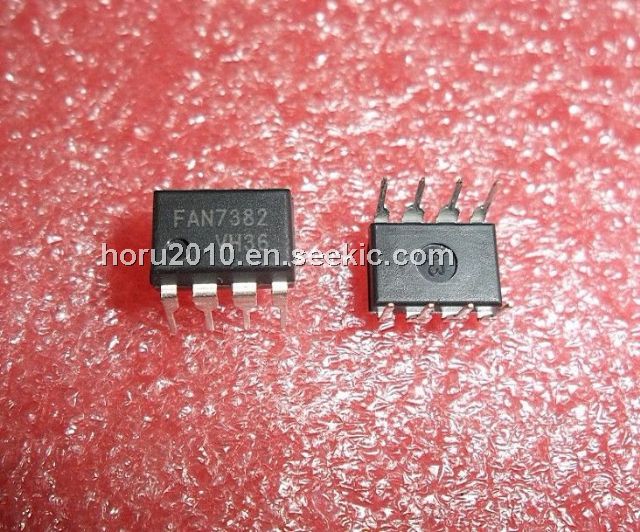

FAN7382N

FAN7382N, Half-Bridge Gate-Driver IC, DIP, -0.3 to 25V, 1.2W, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.64~0.64 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 1000 :	0.64 / Piece

PartNumber:: FAN7382N

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-18

From Other Seller

Part Number:FAN7382N
US $0.64 - 0.64
Quantity:

piece

Product Summary

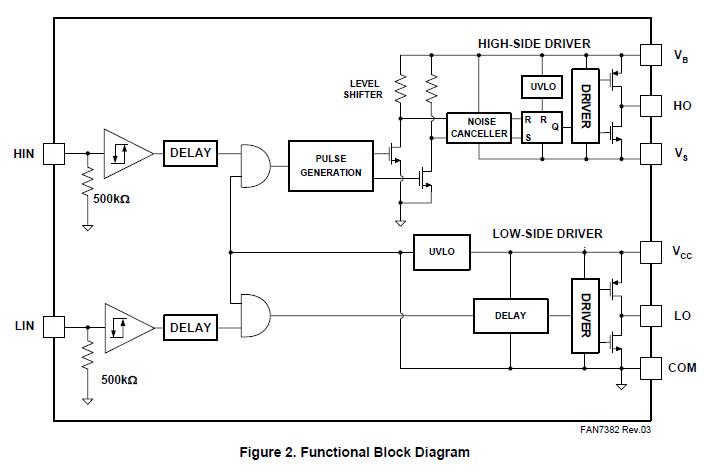

The FAN7382N is a a monolithic half-bridge gate-driver IC, can drive MOSFETs and IGBTs that operate up to +600V. Fairchild’s high-voltage process and commonmode noise canceling technique provides stable operation of the high-side driver under high-dv/dt noise circumstances. An advanced level-shift circuit allows high-side gate driver operation up to VS=-9.8V (typical) for VBS=15V. The input logic level is compatible with standard TTL-series logic gates. UVLO circuits for both channels prevent malfunction when VCC or VBS is lower than the specified threshold voltage. The applications of the FAN7382N include PDP Scan Driver, Fluorescent Lamp Ballast, SMPS, Motor Driver.

Parametrics

FAN7382N absolute maximum ratings: (1)VS, High-side offset voltage: VB-25 to VB+0.3V; (2)VB, High-side floating supply voltage: -0.3 to 625V; (3)VHO, High-side floating output voltage, HO: VS-0.3 to VB+0.3V; (4)VCC, Low-side and logic fixed supply voltage: -0.3 to 25V; (5)VLO, Low-side output voltage LO: -0.3 to VCC+0.3V; (6)VIN, Logic input voltage (HIN, LIN): -0.3 to VCC+0.3V; (7)COM, Logic ground: VCC-25 to VCC+0.3V; (8)dVS/dt, Allowable offset voltage slew rate: 50 V/nsec; (9)PD, Power dissipation, 8-SOP: 0.625W; 14-SOP: 1.0 W; 8-DIP: 1.2W; (10)θJA Thermal resistance, junction-to-ambient, 8-SOP: 200℃/W; 14-SOP: 110℃/W; 8-DIP: 100℃/W; (11)TJ, Junction temperature: 150℃; (12)TSTG, Storage temperature: 150℃.

Features

FAN7382N features: (1)Floating Channels Designed for Bootstrap Operation to +600V; (2)Typically 350mA/650mA Sourcing/Sinking Current Driving Capability for Both Channels; (3)Common-Mode dv/dt Noise Canceling Circuit; (4)Extended Allowable Negative VS Swing to -9V for Signal Propagation at VCC=VBS=15V; (5)VCC & VBS Supply Range from 10V to 20V; (6)UVLO Functions for Both Channels; (7)TTL Compatible Input Logic Threshold Levels; (8)Matched Propagation Delay Below 50nsec; (9)Output In-phase with Input.
