Product Summary

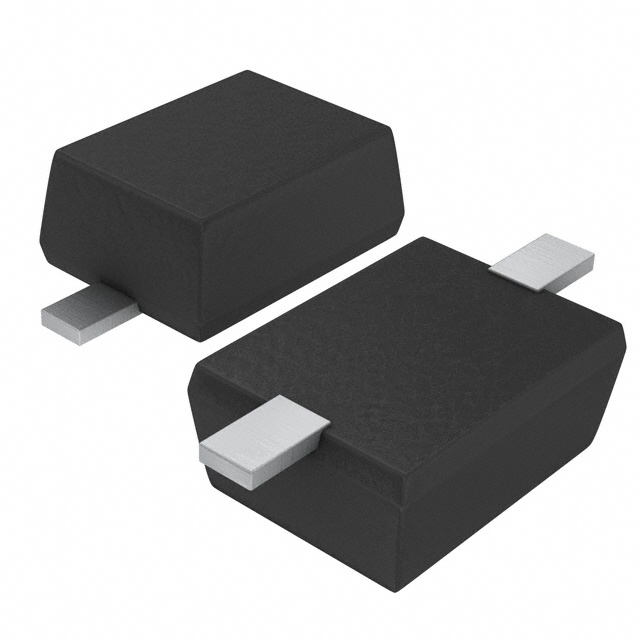

The 1SS355 is a surface mount switching diode.

Parametrics

Absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:90V; (2)Maximum DC Reverse Voltage:80V; (3)Maximum Peak Forward Current:225mA; (4)Mean Rectifying Current:100mA; (5)Surge Current tp=1000ms(1sec):0.5A; (6)Operating Junction and Storage Temperature Range:-55℃ to +150℃.

Features

Features: (1)Small surgace mounting type (SOD-323); (2)High Speed (TRR=1.2ns Typ); (3)High reliability with surge current handing capability; (4)In compliance with EU RoHS 2002/95/EC directives.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1SS355
1SS355
Taiwan Semiconductor
Diodes (General Purpose, Power, Switching) Switching diode 200 mW
Data Sheet
0-36000: $0.01
1SS355 TE-17
1SS355 TE-17
Other

Data Sheet
Negotiable
1SS355TE-17
1SS355TE-17
ROHM Semiconductor
Diodes (General Purpose, Power, Switching) SWITCH 90V 100MA
Data Sheet
0-1: $0.19
1-25: $0.11
25-100: $0.07
100-500: $0.04
1SS355VMTE-17
1SS355VMTE-17

DIODE 80V 100MA HI FREQ UMD2
Data Sheet
0-1: $0.12
1-10: $0.11
10-25: $0.10
25-100: $0.07
100-250: $0.04
250-500: $0.04
500-1000: $0.02
1SS355PT
1SS355PT
Other

Data Sheet
Negotiable
1SS355T1G
1SS355T1G
Other

Data Sheet
Negotiable
