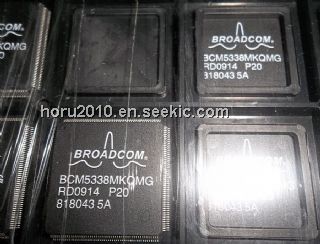

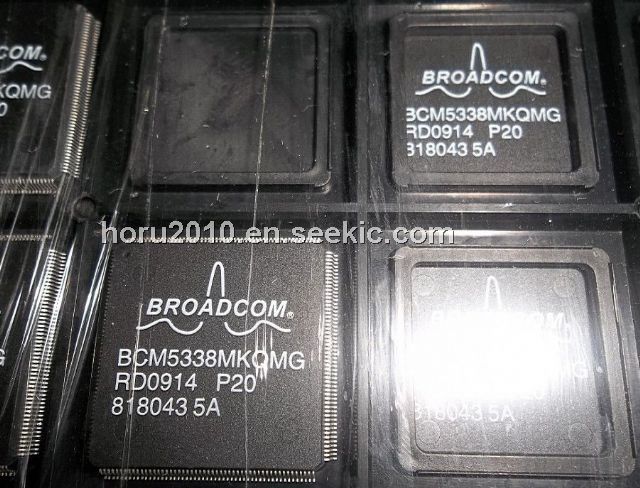

Product Summary

The BCM5338MKQMG is a nine-port managed 10/100 switch with IEEE 802.1/P/X/Q VLAN. The BCM5338MKQMG is a sixth-generation switch designed based on the field-proven industry-leaders. The BCM5338MKQMG combines all of the functions of a high-speed switch system—including packet buffers, PHY transceivers, MACs, address management, and a non-blocking switch fabric—into a single 0.18-micron CMOS device. The BCM5338MKQMG complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x specifications, including the MAC control PAUSE frame and auto-negotiation subsections, providing compatibility with all industry-standard Ethernet and Fast Ethernet devices.

Features

BCM5338MKQMG features: (1)Sixth-generation L2+ Fast Ethernet switch on a chip; (2)Cascades to 36 ports through a 3.2-Gbps expansion port; (3)Stack to 48 ports with a 200-Mbps turbo MII port; (4)IEEE 802.1p QoS packet classification with four priority queues; (5)IEEE 802.1Q based VLAN with 512 entries; (6)Supports IEEE 802.1x EAPOL higher layer protocol; (7)MAC based trunking with automatic link failover; (8)Programmable per port storm control and rate control; (9)Port protection allows traffic aggregation to assigned port; (10)4K MAC addresses with automatic learning and aging; (11)Per port programmable MAC address locking; (12)Programmable per port flow control and back pressure; (13)Buffer repeater mode; (14)MII or reversed MII; (15)MDC/MDIO and SPI interfaces; (16)Port mirroring and IGMP layer2/3 snooping; (17)MIB Autocast function; (18)DTE (power over Ethernet); (19)Hardware support for SNMP, RMON, and STP; (20)Internal oscillator simplifies design and reduces cost; (21)JTAG; (22)3.3V and 1.8V, and typical power consumption is less than 2W; (23)BCM5328M pin-to-pin compatible 208-pin MQFP package.

Diagrams

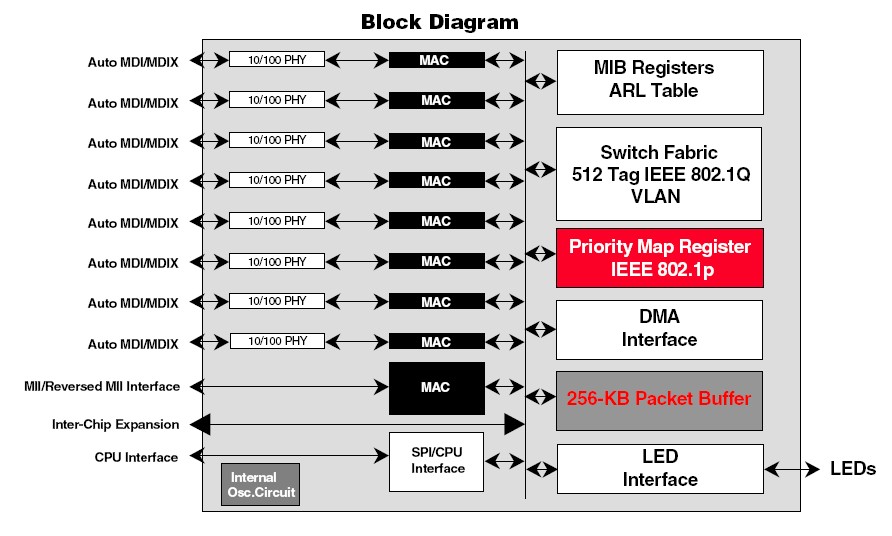

BCM5338MKQMG block diagram
