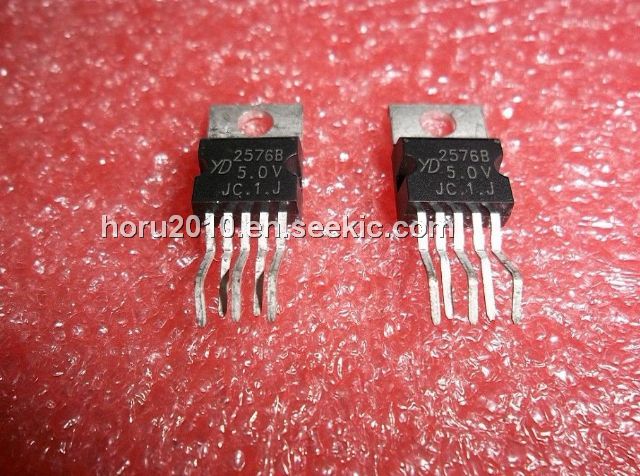

Product Summary

The YD2576B-5.0V is a step-down(buck) switching egulator, capable of driving 3A load with excellent line and regulation.

Parametrics

YD2576B-5.0V absolute maximum ratings: (1)Supply Voltage, Vcc: 45 V; (2)Power Dissipation, PD: 15 W; (3)Operating Temperature, Topr: -25 to +75 ℃; (4)Storage Temperature, Tstg: -65 to +150 ℃.

Features

YD2576B-5.0V features: (1)Guaranteed 3A output current; (2)Requires only 4 external components; (3)52kHz fixed frequency internal oscillator; (4)High efficiency; (5)thermal shutdown and current limit protection.

Diagrams

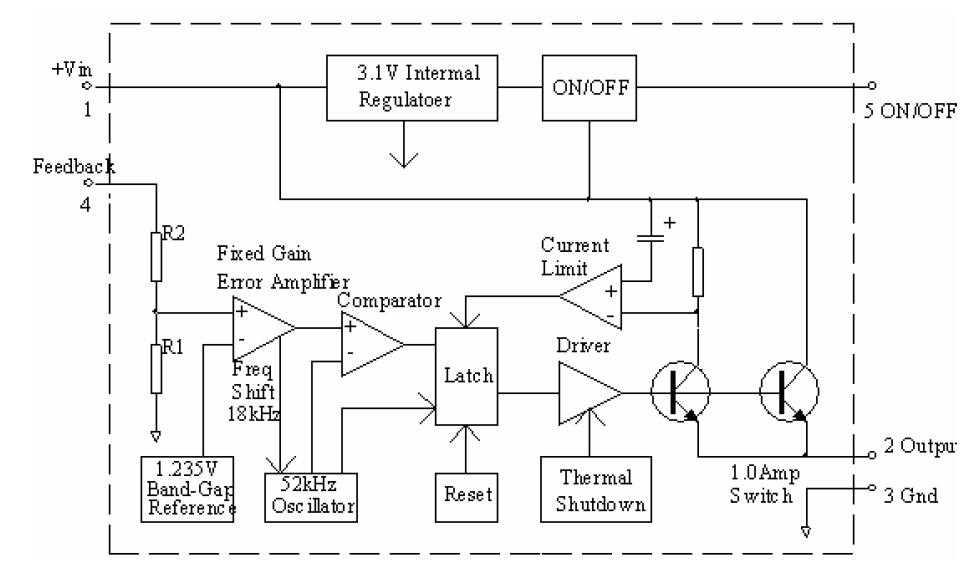

YD2576B-5.0V block diagram
