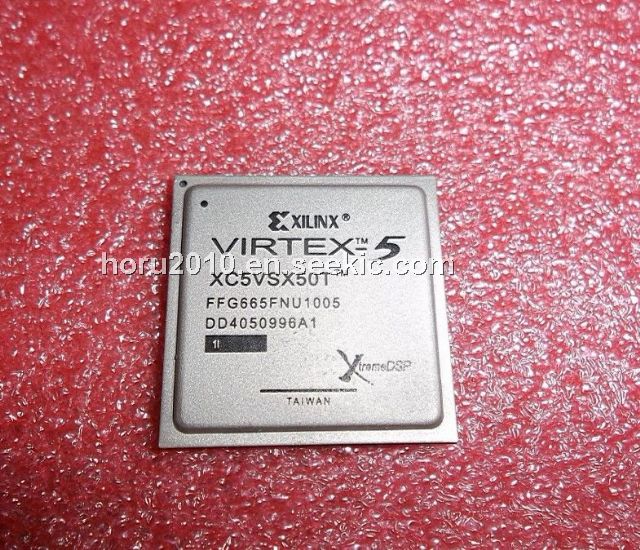

XC5VSX50T-1FFG665I

XC5VSX50T-1FFG665I, FPGA, FBGA, -0.5 to 1.1V, 100mA, Xilinx, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $129.00~158.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9 :	158.00 / Piece
10 ~ 50 :	129.00 / Piece

PartNumber:: XC5VSX50T-1FFG665I

Brand:: Xilinx, Inc - Xilinx | Pack: FBGA | D/C: 09+

Availability:: Supply Ability: 50/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-21

From Other Seller

Part Number:XC5VSX50T-1FFG665I
US $129.00 - 158.00
Quantity:

piece

Product Summary

The XC5VSX50T-1FFG665I is an FPGA. The XC5VSX50T-1FFG665I is available in -3, -2, -1 speed grades, with -3 having the highest performance. The XC5VSX50T-1FFG665I is specified for both commercial and industrial grades. Except the operating temperature range or unless otherwise noted, all the DC and AC electrical parameters are the same for a particular speed grade (that is, the timing characteristics of a -1 speed grade industrial device are the same as for a -1 speed grade commercial device). However, only selected speed grades and/or devices might be available in the industrial range.

Parametrics

XC5VSX50T-1FFG665I absolute maximum ratings: (1)VCCINT Internal supply voltage relative to GND: –0.5 to 1.1 V; (2)VCCAUX Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)VCCO Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT Key memory battery backup supply: –0.5 to 4.05 V; (5)VREF Input reference voltage: –0.5 to 3.75 V; (6)Current applied to an I/O pin, powered or unpowered: ±100 mA; (7)Total current applied to all I/O pins, powered or unpowered:±100mA; (8)Voltage applied to 3-state 3.3V output(4) (user and dedicated I/Os) : –0.75 to 4.05 V; (9)TSTG Storage temperature (ambient): –65 to 150℃; (10)TSOL Maximum soldering temperature(2): +220℃; (11)TJ Maximum junction temperature(2): +125℃.

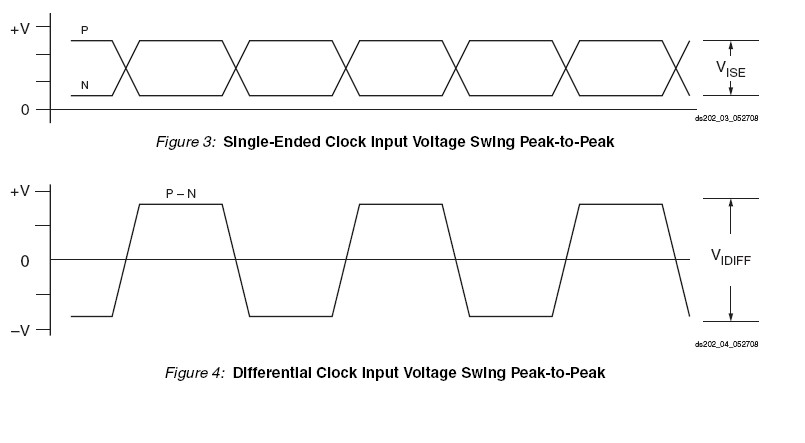

Features

XC5VSX50T-1FFG665I features: (1)Internal supply voltage relative to GND, TJ = 0 to +85 Commercial: 0.95 to 1.05 V; (2)Internal supply voltage relative to GND, TJ = –40℃ to +100℃ Industrial: 0.95 to 1.05 V; (3)Auxiliary supply voltage relative to GND, TJ = 0 to +85℃ Commercial: 2.375 to 2.625 V; (4)Auxiliary supply voltage relative to GND, TJ = –40 to +100℃ Industrial: 2.375 to 2.625 V; (5)Supply voltage relative to GND, TJ = 0 to +85℃ Commercial: 1.14 to 3.45 V; (6)Supply voltage relative to GND, TJ = –40 to +100℃ Industrial: 1.14 to 3.45 V.
