Product Summary

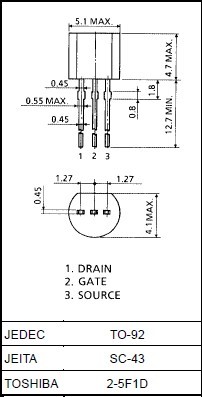

The 2SJ74-BL is TOSHIBA field effect transistor of silicon P channel junction type. It is widely applied to low noise audio amplifier. It is also recommended for first stages of EQ amplifiers and M.C. head amplifiers. There are three pins including drain, gate as well as source. The package is TO-92.
Parametrics
2SJ74-BL absolute maximum ratings:(1)Gate-drain voltage, VGDS: 25V; (2)Gate current, IG: 10mA; (3)Drain power dissipation, PD: 400mW; (4)Junction temperature, Tj: 125℃; (5)Storage temperature range, Tstg: 55 to 125℃.
Features
2SJ74-BL features:(1)Low Noise Audio Amplifier Applications; (2)Recommended for first stages of EQ amplifiers and M.C. head amplifiers; (3)High |Yfs|: |Yfs| = 22 mS (typ.) (VDS = -10 V, VGS = 0, IDSS = -3 mA); (4)Low noise: En = 0.95 nV/Hz1/2 (typ.) (VDS = -10 V, ID = -1 mA, f = 1 kHz); (5)High input impedance: IGSS = 1.0 nA (max) (VGS = 25 V); (6)Complimentary to 2SK170.
