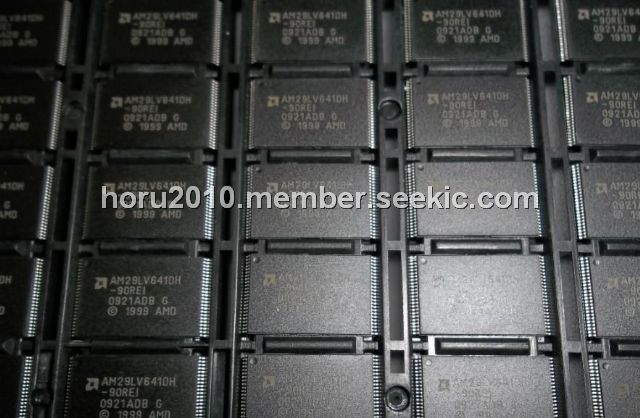

AM29LV641DH-90REI

TSOP48, CMOS 3.0, Volt-only Uniform Sector, Flash Memory, 64 Megabit, VersatileI Control

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.00~10.00

PartNumber:: AM29LV641DH-90REI

Brand:: Advanced Micro Devices - AMD | Pack: TSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lucy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-22

From Other Seller

Part Number:AM29LV641DH-90REI
US $7.00 - 10.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AM29LV641DH-90REI is a 64 Mbit, 3.0 Volt (3.0 V to 3.6 V) single power supply flash memory device organized as 4,194,304 words. Data appears on DQ0-DQ15. The AM29LV641DH-90REI is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be programmed in standard EPROM programmers. Access times of 90 and 120 ns are available for applications where VIO ≥ VCC. Access times of 100 and 120 ns are available for applications where VIO < VCC. The AM29LV641DH-90REI is offered in 48-pin TSOP, 56-pin SSOP, 63-ball Fine-Pitch BGA and 64-ball Fortified BGA packages. To eliminate bus contention each device of the AM29LV641DH-90REI has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls.

Parametrics

AM29LV641DH-90REI absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground VCC: –0.5 V to +4.0 V; (4)VIO: –0.5 V to +5.5 V; (5)A9, OE#, ACC, and RESET: –0.5 V to +12.5 V; (6)All other pins: –0.5 V to VCC +0.5 V; (7)Output Short Circuit Current: 200 mA.

Features

AM29LV641DH-90REI features: (1)Single power supply operation; (2)VersatileIO TM control; (3)High performance; (4)Manufactured on 0.23 μm process technology; (5)CFI (Common Flash Interface) compliant; (6)SecSi (Secured Silicon) Sector region; (7)Ultra low power consumption (typical values at 3.0 V, 5 MHz); (8)Flexible sector architecture; (9)Sector Protection; (10)Embedded Algorithms; (11)Compatibility with JEDEC standards; (12)Minimum 1 million erase cycle guarantee per sector.
