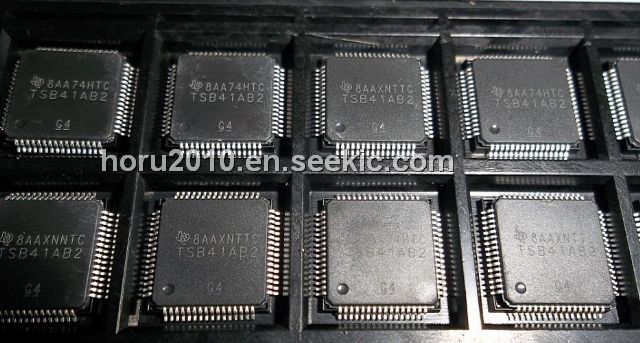

TSB41AB2

TSB41AB2, two-port cable transceiver, QFP, -0.3 V to 4 V, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.13~1.58 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.58 / Piece
10 ~ 100 :	1.29 / Piece
100 ~ 1000 :	1.13 / Piece

PartNumber:: TSB41AB2

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-26

From Other Seller

Part Number:TSB41AB2
US $1.13 - 1.58
TSB41AB2PAP

US $1.50 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

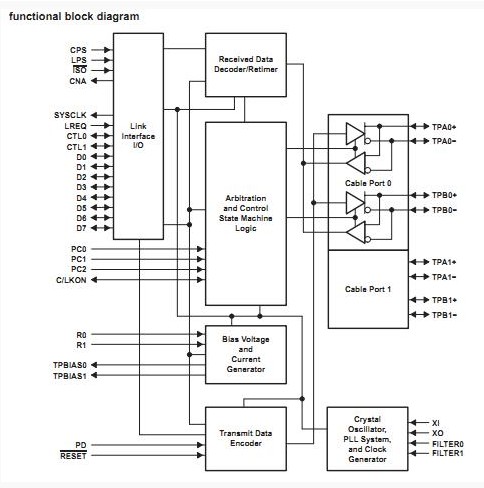

The TSB41AB2 is a two-port cable transceiver. The TSB41AB2 provides the digital and analog transceiver functions needed to implement a two-port node in a cable-based IEEE 1394 network. The cable port incorporates two differential line transceivers. The transceiver includes circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB41AB2 is designed to interface with a link layer controller (LLC).

Parametrics

TSB41AB2 absolute maximum ratings: (1)Supply voltage range, VDD: -0.3 V to 4 V; (2)Input voltage range, VI: -0.5 V to VDD + 0.5 V; (3)Output voltage range at any output, VO: -0.5 V to VDD + 0.5V; (4)Operating free air temperature, TA: 0 to 70℃; (5)Storage temperature range, Tstg: -65 to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TSB41AB2 features: (1)Software Device Reset (SWR); (2)Industry Leading Low Power Consumption; (3)Ultralow-Power Sleep Mode; (4)Cable Power Presence Monitoring; (5)Cable Ports Monitor Line Conditions for Active Connection to Remote Node; (6)Provides Two IEEE 1394a-2000 Fully Compliant Cable Ports at 100/200/400 Megabits Per Second (Mbits/s); (7)Full IEEE 1394a-2000 Support Includes: Connection Debounce, Arbitrated Short Reset, Multispeed Concatenation, Arbitration Acceleration, Fly-By Concatenation, Port Disable/Suspend/Resume.
