Product Summary

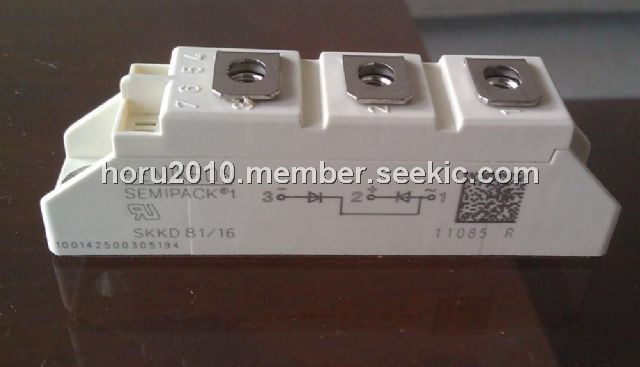

The SKKD81/16 is a rectifier diode module. It is suitable for non-controllable rectifiers for AC/DC converters, line rectifiers for transistorized AC motor controllers and field supply for DC motor.

Parametrics

SKKD81/16 absolute maximum ratings: (1)VRSM: 1700V; (2)VRRM: 1600V.

Features

SKKD81/16 features: (1)heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)hard soldered joints for high reliability; (3)UL recognized, file no.E 63532.

Diagrams

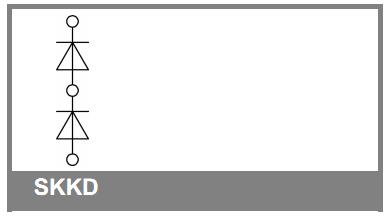

SKKD81/16 circuit diagram
