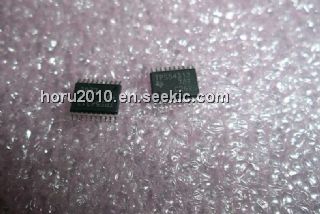

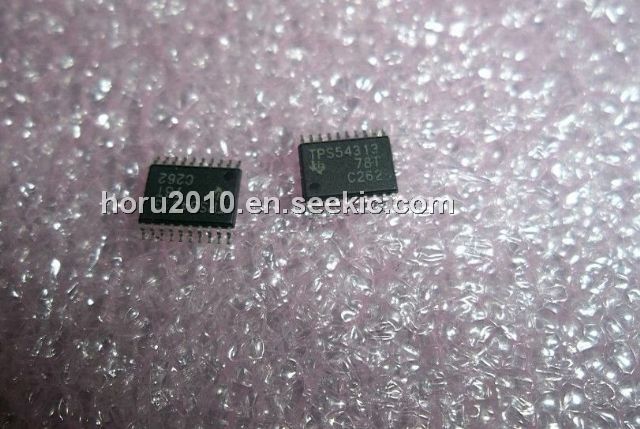

TPS54313

Product Summary

The TPS54313 is a low-input-voltage high-output current synchronous-buck PWM converter which integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that provides high performance under transient conditions; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a power good output useful for processor/logic reset, fault signaling, and supply sequencing. The applications of the TPS54313 include Low-Voltage, High-Density Systems With Power Distributed at 5 V or 3.3 V, Point of Load Regulation for High Performance DSPs, FPGAs, ASICs, and Microprocessors, Broadband, Networking and Optical Communications Infrastructure, Portable Computing/Notebook PCs.

Parametrics

TPS54313 absolute maximum ratings: (1)Input voltage range, VI, VIN, SS/ENA, SYNC: -0.3 V to 7 V; RT: -0.3 V to 6 V; VSENSE: -0.3 V to 4 V; BOOT: -0.3 V to 17 V; (2)Output voltage range, VO, VBIAS, PWRGD, COMP: -0.3 V to 7 V; PH: -0.6 V to 10 V; (3)Source current, IO, PH: Internally Limited; COMP, VBIAS: 6 mA; (4)Sink current, PH: 6 A; COMP: 6 mA; SS/ENA,PWRGD: 10 mA; (5)Voltage differential, AGND to PGND: ±0.3 V; (6)Operating virtual junction temperature range, TJ: -40℃ to 125℃; (7)Storage temperature, Tstg: -65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃.

Features

TPS54313 features: (1)60-mΩ MOSFET Switches for High Efficiency at 3-A Continuous Output Source or Sink Current; (2)0.9-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V and 3.3-V Fixed Output Voltage Devices With 1% Initial Accuracy; (3)Internally Compensated for Low Parts Count; (4)Fast Transient Response; (5)Wide PWM Frequency: Fixed 350 kHz, 550 kHz, or Adjustable 280 kHz to 700 kHz; (6)Load Protected by Peak Current Limit and Thermal Shutdown; (7)Integrated Solution Reduces Board Area and Total Cost.

Diagrams
