BTS6143D

Smart Highside Power Switch, TO252, DPAK-5, Current limitation, 38 V, 59 W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~1.00

PartNumber:: BTS6143D

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lucy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-01

From Other Seller

Part Number:BTS6143D
US $0.30 - 1.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

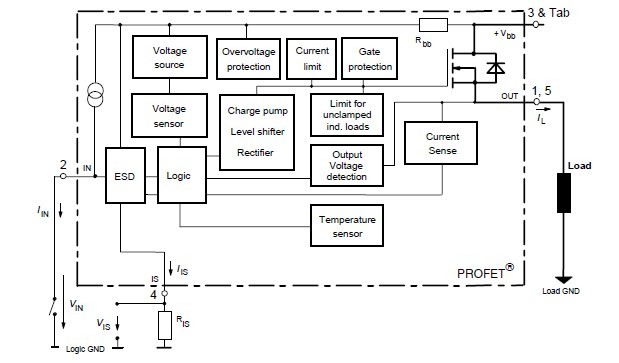

The BTS6143D is an N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in smart SIPMOS chip on chip technology. The BTS6143D provides embedded protective functions.
