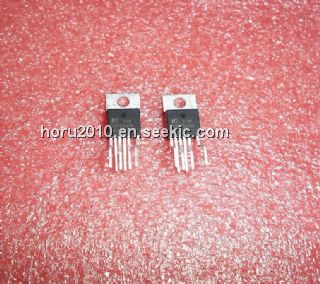

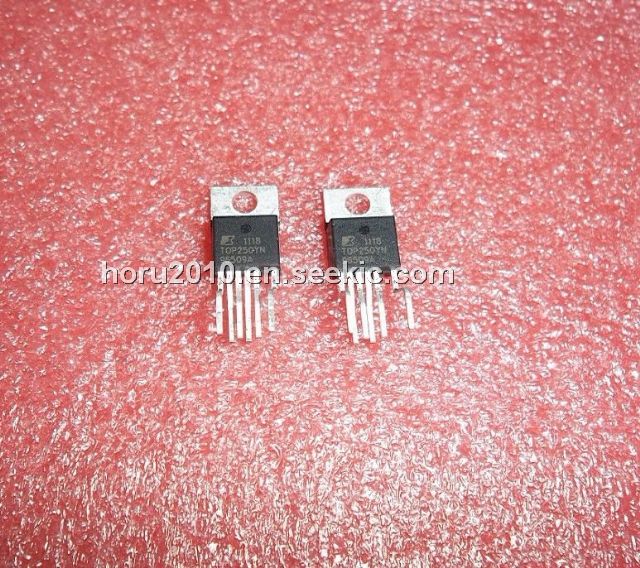

TOP250YN

integrated off-line switcher, 100mA, -0.3 to 9V, ZIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.58~3.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9 :	3.25 / Piece
10 ~ 100 :	1.58 / Piece

PartNumber:: TOP250YN

Brand:: Power IC Ltd. - Power | Pack: ZIP | D/C: 10+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-12

From Other Seller

Part Number:TOP250YN
US $1.58 - 3.25
Quantity:

piece

Product Summary

The TOP250YN is an extended power, design flexible, integrated off-line switcher. Depending on package type, either 1 or 3 additional pins over the TOPSwitch standard DRAIN, SOURCE and CONTROL terminals allow the following functions: line sensing (OV/UV, line feed-forward/DCMAX reduction), accurate externally set current limit, remote ON/OFF, synchronization to an external lower frequency, and frequency selection.

Parametrics

TOP250YN absolute maximum ratings: (1)drain peak current: 10.08A; (2)Drain voltage: -0.3 to 700V; (3)control current: 100mA; (4)lead temperature: 260℃; (5)storage temperature: -65 to 150℃; (6)operating junction temperature: -40 to 150℃.

Features

TOP250YN features: (1)Extended power range for higher power applications; (2)No heatsink required up to 34 W using P package; (3)Features eliminate or reduce cost of external components; (4)Fully integrated soft-start for minimum stress/overshoot; (5)Externally programmable accurate current limit; (6)Wider duty cycle for more power, smaller input capacitor; (7)Separate line sense and current limit pins on Y/R/F packages; (8)Line under-voltage (UV) detection: no turn off glitches.
