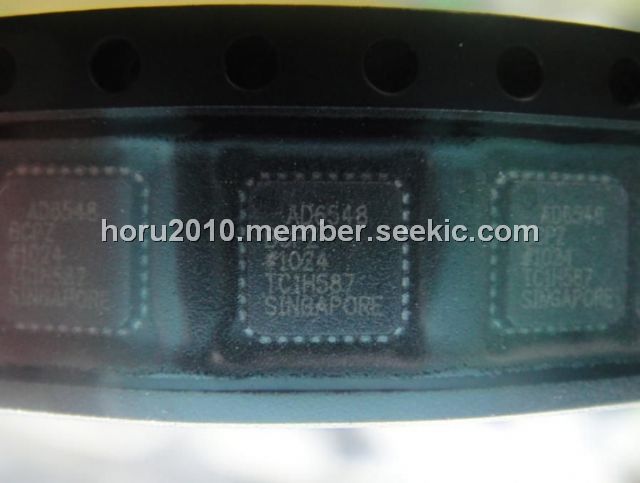

Product Summary
The AD6548BCPZ is a monolithic V/F converter consisting of an input amplifier, a precision oscillator system, and a high current output stage. The AD6548BCPZ operates from a single supply of 5 V to 36 V and consumes only 2.0 mA quiescent current. The low drift (4 μV/℃ typ) input amplifier allows operation directly from small signals such as thermocouples or strain gauges while offering a high (250 MΩ) input resistance. Unlike most V/F converters, the AD6548BCPZ provides a square-wave output, and can drive up to 12 TTL loads, optocouplers, long cables, or similar loads.
Parametrics
AD6548BCPZ absolute maximum ratings: (1)Total Supply Voltage +VS to –VS:36 V; (2)Maximum Input Voltage:300 mV to +VS; (3)Maximum Output Current:Instantaneous:50 mA, Sustained:25 mA; (4)Logic Common to –VS:–500 mV to (+VS –4); (5)Storage Temperature Range:–65℃ to +150℃.
Features
AD6548BCPZ features: (1)Low Cost; (2)Single or Dual Supply, 5 V to 36 V, 65 V to 618 V; (3)Full-Scale Frequency Up to 500 kHz; (4)Minimum Number of External Components Needed; (5)Versatile Input Amplifier: Positive or Negative Voltage Modes, Negative Current Mode, High Input Impedance, Low Drift; (6)Low Power: 2.0 mA Quiescent Current; (7)Low Offset: 1 mV.
Diagrams
![]() |
