Product Summary

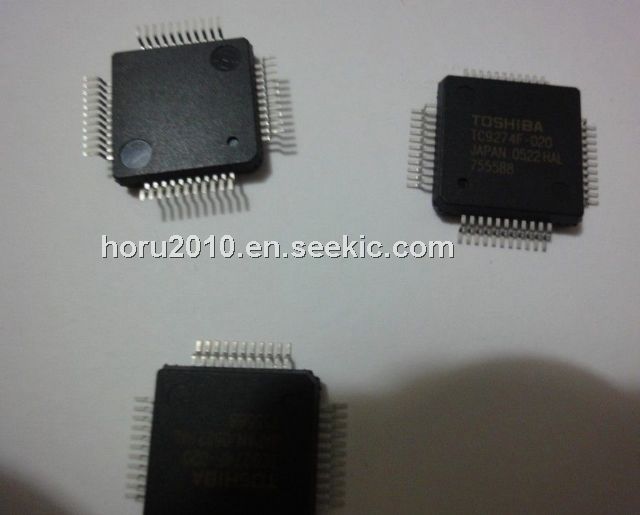

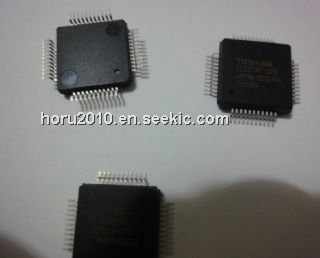

The TC9274F-020 is an analog switch array IC developed for use in audio equipment such as home stereo sets. Switch connection layouts can be customized for different sets, thus simplifying the external wiring.
Parametrics
TC9274F-020 absolute maximum ratings: (1)Power supply voltage, VDD-VSS: -0.3 to 6V; (2)Power supply voltage, VDD-GND: -0.3 to 20V; (3)GND input voltage, VIN: -0.3 to VDD +0.3V; (4)VSS input voltage, VIN: VSS -0.3 to VDD +0.3V; (5)Power dissipation, PD: 300mW; (6)Operating temperature, Topr: -40 to 85℃; (7)Storage temperature, Tstg: -65 to 150℃.
Features
TC9274F-020 features: (1)18 analog switches×2 channels built in: TC9274F; (2)An aluminum mask process allows switch connections to be customized; (3)Switches are controlled by serial data; (4)Built-in 5V microcomputer interface; (5)Shrink DIP or flat package.
Diagrams
