Product Summary

The MIC59150YME is a high-bandwidth, low-dropout, 1.5A linear voltage regulator ideal for powering core voltages of low-power microprocessors. The MIC59150YME implements a dual supply configuration allowing for a very low output impedance and a very fast transient response. The MIC59150YME requires a bias input supply and a main input supply, allowing for ultra-low input voltages on the main supply rail. The device operates from an input supply of 1.0V to 3.8V and bias supply between 3V and 5.5V. The MIC59150YME offers adjustable output voltages down to 0.5V. The MIC59150YME requires a minimum output capacitance for stability, working optimally with small ceramic capacitors.

Parametrics

MIC59150YME absolute maximum ratings: (1)Supply Voltage (VIN): -0.3V to 4V; (2)Enable Voltage (VEN): -0.3V to VBIAS; (3)Power Dissipation (PD): Internally Limited; (4)Storage Temperature (Ts): -65℃ to +150℃; (5)ESD Rating: 3kV.

Features

MIC59150YME features: (1)Input voltage range: VIN = 1.0V to 3.8V; VBIAS = 3.0V to 5.5V; (2)Stable with 1μF ceramic capacitor; (3)Maximum dropout voltage of 250mV over temperature; (4)Adjustable output voltage down to 0.5V; (5)Ultra fast transient response; (6)Excellent line and load regulation specifications; (7)Logic controlled shutdown option; (8)Thermal shutdown and current limit protection; (9)Junction temperature range: -40℃ to +125℃; (10)8-pin EPAD SOIC.

Diagrams

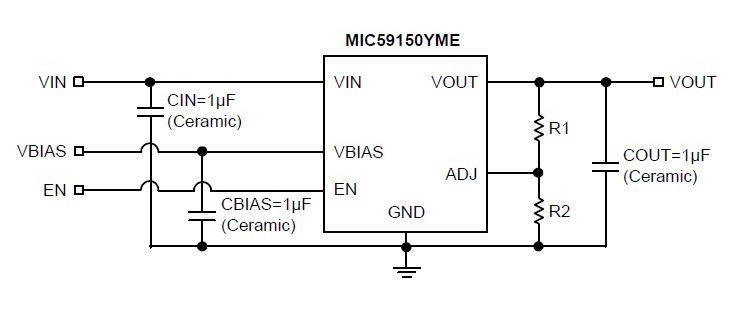

MIC59150YME Typical Application

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MIC59150YME
MIC59150YME


IC REG LDO ADJ 1.5A 8-SOIC

Data Sheet

0-1: $1.63
1-25: $1.31
25-100: $1.02
100-250: $0.97
250-500: $0.94
MIC59150YME TR
MIC59150YME TR


IC REG LDO ADJ 1.5A 8SOIC

Data Sheet

0-2500: $0.97
