Product Summary

The 74ACT139MTCX is a high-speed, dual 1-of-4 decoder/demultiplexer. The 74ACT139MTCX has two independent decoders, each accepting two inputs and providing four mutuallyexclusive active-LOW outputs. Each decoder has an active-LOW Enable input which can be used as a data input for a 4-output demultiplexer. Each half of the 74ACT139MTCX can be used as a function generator providing all four minterms of two variables.

Parametrics

74ACT139MTCX absolute maixmum ratings: (1)ICC reduced by 50%; (2)Multifunction capability; (3)Two completely independent 1-of-4 decoders; (4)Active LOW mutually exclusive outputs; (5)Outputs source/sink 24 mA; (6)ACT139 has TTL-compatible inputs.

Features

74ACT139MTCX features: (1)ICC reduced by 50%; (2)Multifunction capability; (3)Two completely independent 1-of-4 decoders; (4)Active LOW mutually exclusive outputs; (5)Outputs source/sink 24 mA; (6)ACT139 has TTL-compatible inputs.

Diagrams

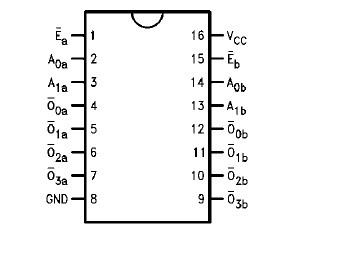

74ACT139MTCX Connection Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74ACT139MTCX
74ACT139MTCX

Fairchild Semiconductor

Encoders, Decoders, Multiplexers & Demultiplexers Dual 1-of-4 Dec/Dem

Data Sheet
