Product Summary
The TC4017BP is a Decade Counter/Divider. TC4017BP is decimal Johnson counter consisting of 5 stage D-type flip-flop equipped with the decoder to convert the output to decimal.
Parametrics
TC4017BP absolute maximum ratings: (1)DC supply voltage : VSS - 0.5 to VSS + 20 V; (2)Input voltage : VSS - 0.5 to VDD + 0.5 V; (3)Output voltage : VSS - 0.5 to VDD + 0.5 V; (4)DC input current : ±10 mA; (5)Power dissipation : 300 mW; (6)Operating ambient temperature range: -40 to 85 ℃; (7)Storage temperature range : -65 to 150 ℃.
Features
TC4017BP features: (1)Output transition time (low to high): 80ns; (2)Output transition time (high to low): 50ns; (3)Propagation delay time (CLOCK-Qn): 325ns; (4)Propagation delay time (CLOCK-CARRY OUT):280ns.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

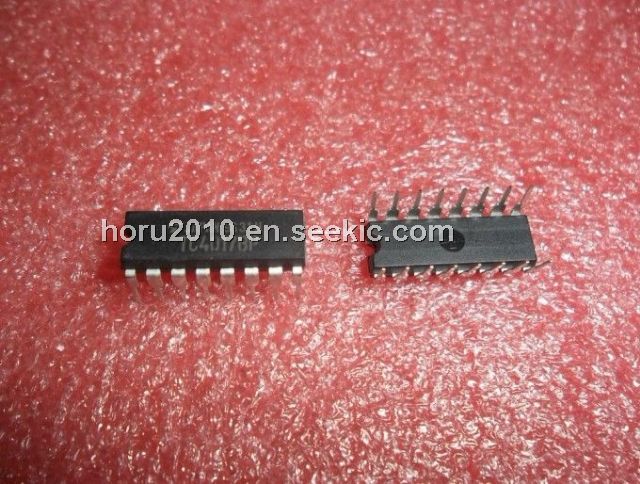

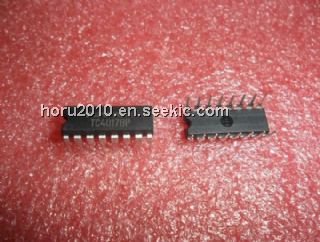

TC4017BP |
Other |
Data Sheet |
Negotiable |
|
||||||||
TC4017BP(F,N,M) |
IC COUNTER/DIVIDER DECADE 16-DIP |
Data Sheet |
Negotiable |
|
||||||||
TC4017BP(N) |
Toshiba |
IC COUNTER/DIVIDER DECADE 16-DIP |
Data Sheet |
|
|
