S87C196KB16

S87C196KB16, commercial/express CHMOS microcontroller, QFP, -0.5V to 7.0V, 1.5W, Intel Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.70~3.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 100 :	3.70 / Piece

PartNumber:: S87C196KB16

Brand:: Intel Corporation - Intel | Pack: QFP | D/C: 88+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-01

From Other Seller

Part Number:S87C196KB16
US $3.70 - 3.70
Quantity:

piece

Product Summary

The S87C196KB16 is a 16-bit microcontroller. The S87C196KB16 is a high performance member of the MCSE 96 microcontroller family. Intel’s CHMOS process provides a high performance processor along with low power consumption. To further reduce power requirements, the S87C196KB16 processor can be placed into Idle or Powerdown Mode.

Parametrics

S87C196KB16 absolute maximum ratings: (1)Ambient Temperature, Under Bias: -55 to 125℃; (2)Storage Temperature: -65 to 150℃; (3)Voltage On Any Pin to VSS: -0.5V to 7.0V; (4)Power Dissipation: 1.5W.

Features

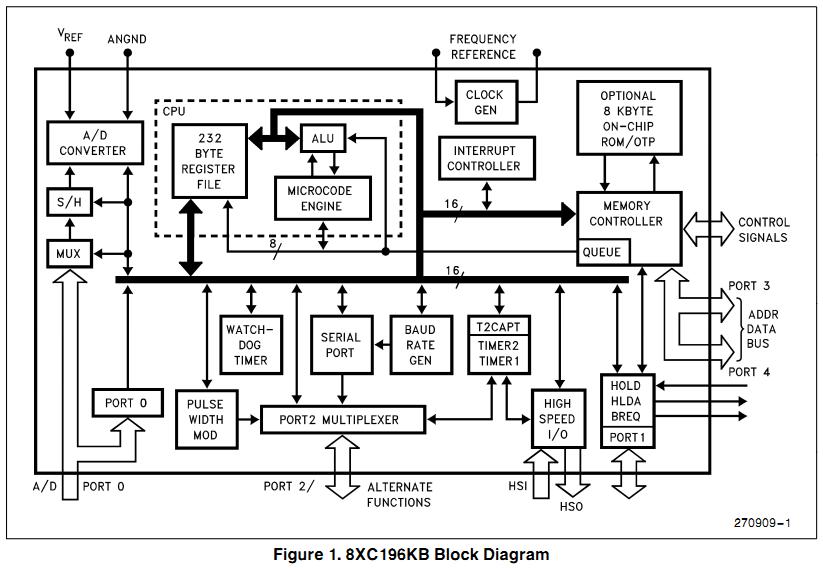

S87C196KB16 features: (1)8 Kbytes of On-Chip ROM/OTP Available; (2)232 Byte Register File; (3)Register-to-Register Architecture; (4)28 Interrupt Sources/16 Vectors; (5)1.75 ms 16 x 16 Multiply (16 MHz); (6)3.0 ms 32/16 Divide (16 MHz); (7)Powerdown and Idle Modes; (8)Five 8-Bit I/O Ports; (9)16-Bit Watchdog Timer; (10)12 MHz and 16 MHz Available; (11)Dedicated 15-Bit Baud Rate Generator; (12)Dynamically Configurable 8-Bit or 16-Bit Buswidth; (13)Full Duplex Serial Port; (14)High Speed I/O Subsystem; (15)16-Bit Timer; (16)16-Bit Up/Down Counter with Capture; (17)Pulse-Width-Modulated Output; (18)Four 16-Bit Software Timers; (19)10-Bit A/D Converter with Sample/Hold; (20)HOLD/HLDA Bus Protocol; (21)Extended Temperature Available.
