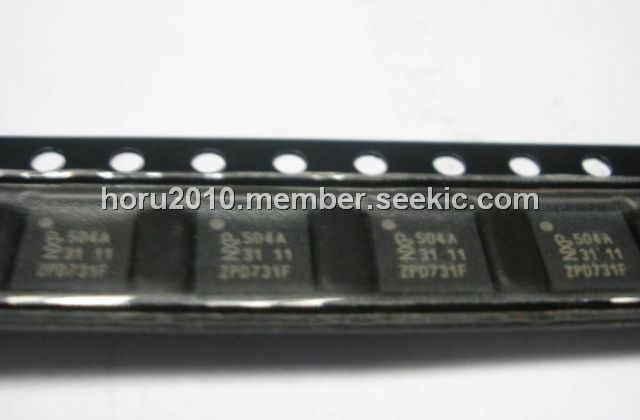

ISP1504ABS

Universal Serial, Bus (USB) On-The-Go, transceiver, QFN-32, -0.5 to +4.6V supply voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~4.00

PartNumber:: ISP1504ABS

Brand:: NXP Semiconductors - nxp | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lucy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-22

From Other Seller

Part Number:ISP1504ABS
US $1.00 - 4.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ISP1504ABS is a Universal Serial Bus (USB) On-The-Go (OTG) transceiver that is fully compliant with Universal Serial Bus Specification Rev. 2.0, On-The-Go Supplement to the USB 2.0 Specification Rev. 1.2 and UTMI+ Low Pin Interface (ULPI)Specification. The applications of the ISP1504ABS include: (1)Digital still camera; (2)Digital TV; (3)Digital Video Disc (DVD) recorder; (4)External storage device, for example: Zip drive; Magneto-Optical (MO) drive; Optical drive: CD-ROM, CD-RW, DVD; (5)Mobile phone.

Parametrics

ISP1504ABS absolute maxing ratings: (1)VCC supply voltage: min=-0.5V, max=+4.6V; (2)VCC(I/O) input/output supply voltage: min=-0.5V, max=+4.6V; (3)On the conditions of on pins clock, STP, DATA[7:0], reset_N and chip_select_N, VI input voltage: min= -0.5V, max=VCC(I/O) + 0.5V; On the conditions of on pins VBUS, fault and PSW_N: min=-0.5V, max=+6.0V; On the conditions of on pin XTAL1: min=-0.5V, max=+2.5V; On the conditions of on pin ID: min=-0.5V, max=+4.6V; (4)On the conditions of pins DP, DM, ID, VBUS and GND; Iu<1μA, VESD electrostatic discharge voltage: min=-4kV, max=+4kV; On the conditions of all other pins; ILI<1μA: min=-1.5kV, max=+1.5kV.

Features

ISP1504ABS features: (1)Fully complies with: Universal Serial Bus Specification Rev. 2.0; On-The-Go Supplement to the USB 2.0 Specification Rev. 1.2; UTMI+ Low Pin Interface (ULPI) Specification Rev. 1.1; (2)Interfaces to host, peripheral and OTG device cores; optimized for portable devices or system ASICs with built-in USB OTG device core; (3)Complete USB OTG physical front-end that supports Host Negotiation Protocol (HNP) and Session Request Protocol (SRP).
