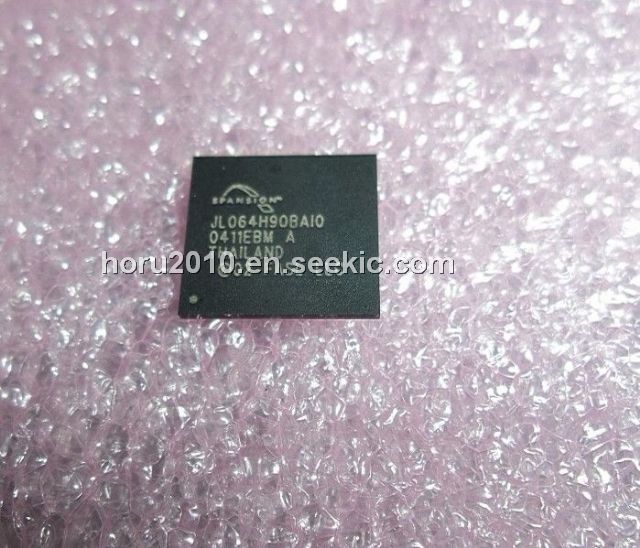

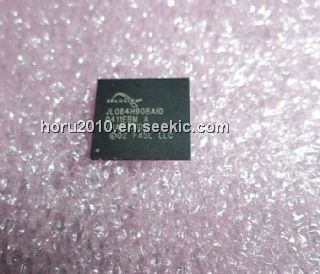

S29JL064H90BAI0

Product Summary

The S29JL064H90BAI0 is a 64 megabit, 3.0 volt-only flash memory device, organized as 4,194,304 words of 16 bits each or 8,388,608 bytes of 8 bits each. Word mode data appears on DQ15–DQ0; byte mode data appears on DQ7–DQ0. The device is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers. The S29JL064H90BAI0 is available with an access time of 55, 60, 70, or 90 ns and is offered in 48-pin TSOP and 63-ball Fine Pitch BGA packages. Standard control pins—chip enable (CE#), write enable (WE#), and output enable (OE#)—control normal read and write operations, and avoid bus contention issues.

Parametrics

S29JL064H90BAI0 absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC: -0.5 V to +4.0 V; (4)A9, OE#, and RESET#: -0.5 V to +12.5 V; (5)WP#/ACC: -0.5 V to +10.5 V; (6)All other pins: -0.5 V to VCC +0.5 V; (7)Output Short Circuit Current: 200 mA.

Features

S29JL064H90BAI0 features: (1)Simultaneous Read/Write operations, Data can be continuously read from one bank while executing erase/program functions in another bank; Zero latency between read and write operations; (2)Flexible Bank architecture, Read may occur in any of the three banks not being written or erased; Four banks may be grouped by customer to achieve desired bank divisions; (3)Boot Sectors, Top and bottom boot sectors in the same device; Any combination of sectors can be erased; (4)Manufactured on 0.13 μm process technology; (5)SecSi. (Secured Silicon) Sector: Extra 256 Byte sector, Factory locked and identifiable: 16 bytes available for secure, random factory Electronic Serial Number; verifiable as factory locked through autoselect function; Customer lockable: One-time programmable only. Once locked, data cannot be changed; (6)Zero Power Operation, Sophisticated power management circuits reduce power consumed during inactive periods to nearly; (7)zero; (8)Compatible with JEDEC standards, Pinout and software compatible with single-powersupply flash standard.

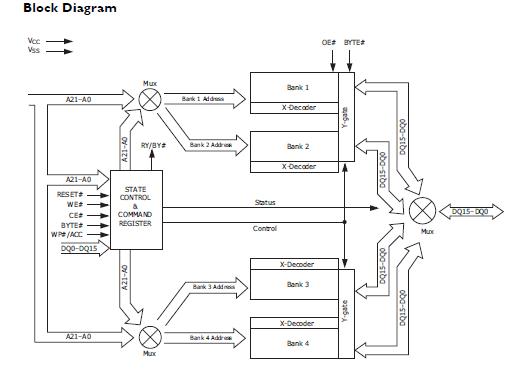

Diagrams
