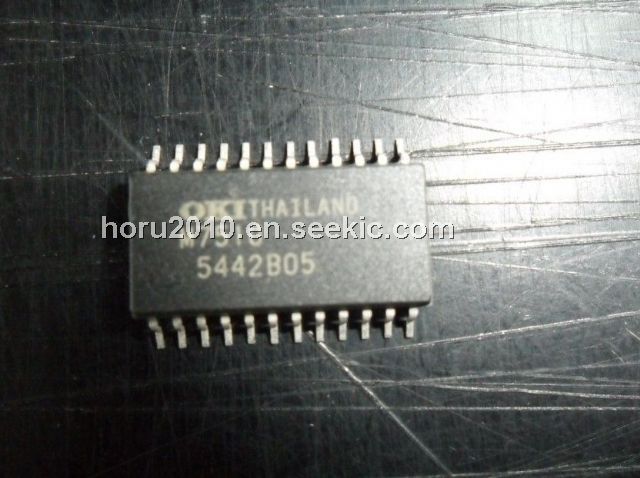

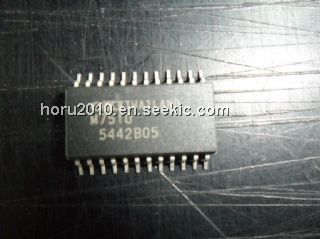

Product Summary
The MSM7510GS-K is useful for the ITU-T V.21 modem, for examples, low cost built-in modems, telecontrol systems, home security systems, etc. Oki has been mass-producing and delivering the MSM6926 and 6927 for a long time, but these devices need two power supplies, +5 V for digital and +12 V for analog. New generation device, the MSM7510GS-K, works with single rail +3 V to +5 V and low power consumption.
Parametrics
MSM7510GS-K absolute maximum ratings: (1)Power Supply Voltage, Ta = 25℃, VDD: -0.3 to +7 V; (2)Input Voltage, With respect to GND, VIN: -0.3 to VDD + 0.3 V; (3)Storage Temperature, TSTG: -55 to +150℃.
Features
MSM7510GS-K features: (1)Conforms to ITU-T V.21, 300 bps Full Duplex; (2)ITU-T V.25 Answer Tone (2100 Hz) with Generator/Detector; (3)Single Power Supply: +3 V to +5 V; (4)Low Power Consumption, Operating Mode: 25 mW Typ; Power Down Mode: 0.1 mW Max.; (5)Line Hybrid Circuit on Chip (direct drive capability of 600W); (6)ALB (Analog-Loop back) with test mode.; (7)3.579545 MHz Crystal Oscillator; (8)Digital Interface: TTL; (9)Package options: 16-pin plastic DIP (DIP16-P-300-2.45) (Product name: MSM7510RS); 24-pin plastic SOP (SOP24-P-430-1.27-K) (Product name: MSM7510GS-K).

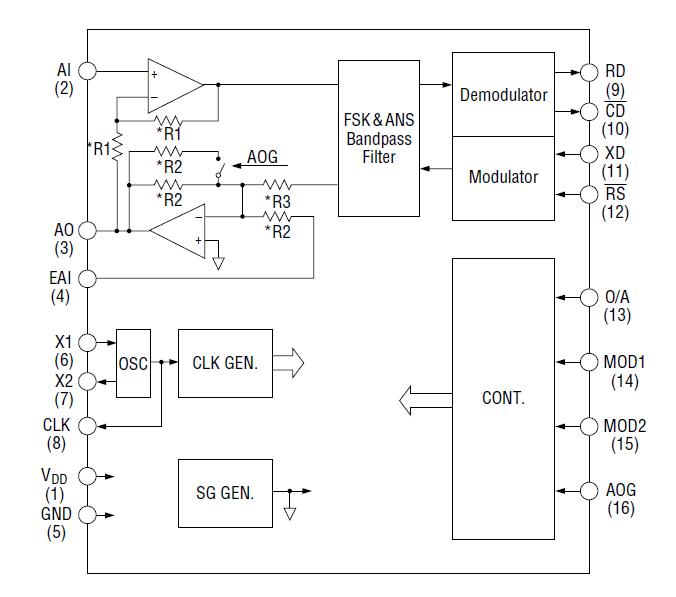

Diagrams
