Product Summary
The MAX9374AEKA+T is a 2.0GHz differential LVPECL-to-LVDS translators and are designed for telecom applications. The device features 250ps propagation delay. The differential output conforms to the ANSI TIA/EIA-644 LVDS standard. The inputs are biased with internal resistors such that the output is differential low when inputs are open. An on-chip VBB reference output is available for single-ended operation. The applications of the MAX9374AEKA+T include Precision Clock Buffer, Low-Jitter Data Repeater, Central Office Clock Distribution, DSLAM/DLC, Base Station, Mass Storage.
Parametrics
MAX9374AEKA+T absolute maximum ratings: (1)VCC to GND: 4.0V; (2)VD, VD to GND: -0.3V to VCC + 0.3V; (3)VD to VD: 3.0V; (4)VBB Sink/Source Current: 1mA; (5)Short-Circuit Duration (Q, Q to GND): Continuous; (6)Short-Circuit Duration (Q to Q): Continuous; (7)Continuous Power Dissipation (TA = +70℃); (8)8-Pin SOT23 (derate 8.9mW/℃ above +70℃): 714mW ; (9)8-Pin SO (derate 5.9mW/℃ above +70℃): 470mW.
Features
MAX9374AEKA+T features: (1)Guaranteed 2.0GHz Operating Frequency; (2)250ps (typ) Propagation Delay; (3)1.0ps RMS Jitter (typ); (4)2.375V to 2.625V Low-Voltage Supply Range (MAX9374); (5)On-Chip VBB Reference for Single-Ended Inpu; (6)Output Low for Open Inputs; (7)Output Conforms to ANSI TIA/EIA-644 LVDS Standard; (8)ESD Protection >2.0kV (Human Body Model); (9)Available in Small 8-Pin SOT23 Package.

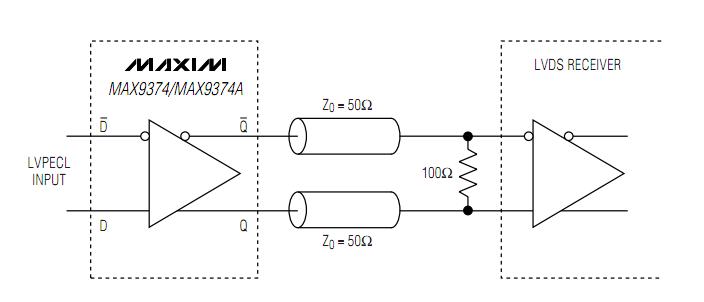

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX9374AEKA+T |
Maxim Integrated Products |
Translation - Voltage Levels Differential LVPECL To LVDS Translator |
Data Sheet |
|
|
||||||||||||
