Product Summary

The M34063A is a PCM conference call and tone generation circuit specifically designed for applications in PCM digital exchanges. It is able to handle up to 64 channels in any conferences combination from 1 to 29 conferences in parallel and to generate seven different tones and one melody. The M34063A in a conference must previously be allocated through the Digital Switching Matrix (M3488) in a single serial wire at M34116 PCM input (IN PCM pin).

Parametrics

M34063A absolute maximum ratings: (1)VDD, Supply Voltage: -0.3 to 7 V; (2)Vi, Input Voltage: -0.3 to VDD; (3)VO (off), Off State Output Voltage: -0.3 to 7 V; (4)Ptot, Total Power Dissipation: 500 mW; (5)Tstg, Storage Temperature: -65 to 150℃; (6)Top, Operating Temperature: 0 to 70℃.

Features

M34063A features: (1)hw and sw compatible with m116; (2)1 to 64 serial channels per frame (controlled by sync signal period) 29 maximum conferences; (3)1 to 64 serial channels per conferences; (4)3 simultaneous operation modes available: conference, transparent and tone generation; (5)typical bit rates: 1536/1544/2048/4096kbits/s; (6)compatible with all kinds of pcm format; (7)μanda law (pin programmable); (8)equal priority to every channel; (9)one frame and one channel delay from sending to receiving; (10)overflowinformation for each conference by pin os (overflow signalling) and on data bus on mpu request.

Diagrams

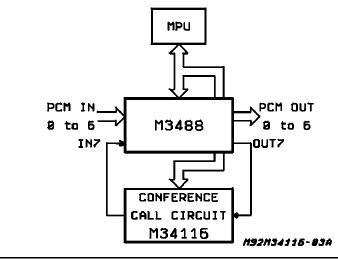

M34063A block diagram
