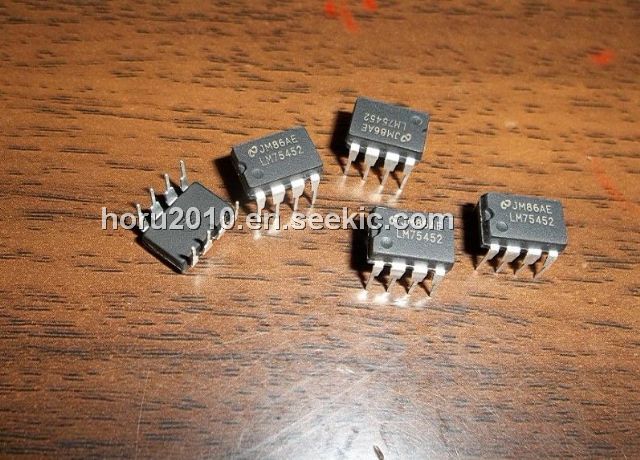

Product Summary

The LM75452 is a general purpose dual peripheral driver, each capable of sinking two independent 300mA loads to ground. In the off state (or with VCC=0V) the outputs will withstand 30V. Inputs are fully DTL/TTL compatible. The LM75452 meets or exceeds the specifications for the LM75452 respecifitively, and is a pin-for-pin replacement.

Parametrics

LM75452 absolute maximum ratings: (1)Supply voltage, VVC: 7V; (2)Input voltage: 5.5V; (3)Output voltage: 30V; (4)Continuous output current: 300mA; (5)Continous total power dissipation: 800mW; (6)Operating free air temperature range: 0℃ to 70℃; (7)Storage temperature range: -65℃ to 150℃; (8)Lead temperature: 300℃.

Features

LM75452 features: (1)High speed; (2)Both outputs can sink 300mA simultaneously; (3)Withstands 30V on output with VCC=0V for power strobing applications; (4)Input clamp diodes; (5)Two separate drivers per package.

Diagrams

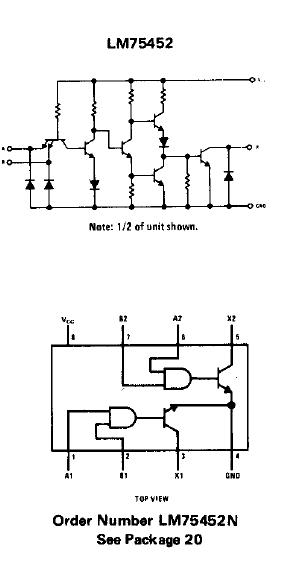

LM75452 block diagram
