Product Summary

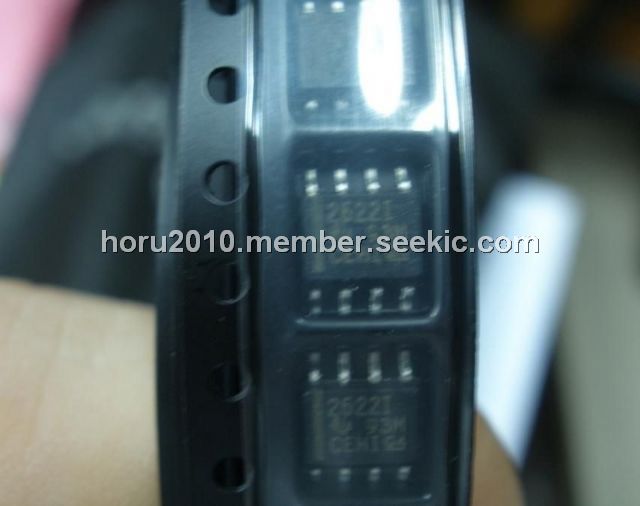

The TLV2622IDR single supply operational amplifier provides rail-to-rail output with an input range that includes the positive rail. The TLV2622IDR takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range (-40℃ to 125℃) while adding the rail-to-rail output swing feature. The TLV2622IDR also provides 11-MHz bandwidth from only 800 μA of supply current. The maximum recommended supply voltage is 5.5 V, which, when coupled with a 2.7-V minimum, allows the TLV2622IDR to be operated from lithium ion cells. The combination of wide bandwidth, low noise, and low distortion makes it ideal for high speed and high resolution data converter applications. The positive input range allows it to directly interface to positive rail referred systems. All members are available in PDIP and SOIC with the singles in the small SOT-23 package, duals in the MSOP, and quads in the TSSOP package.
Parametrics
TLV2622IDR absolute maixmum ratings: (1)VDD Supply voltage: 6 V; (2)VID Differential input voltage: ±VDD; (3)VI Input voltage range: +1 to VDD + 0.2 V; (4)II Input current (any input): ± 10 mA; (5)IO Output current: ±40 mA; (6)TA Operating free-air temperature range: I-suffix: -40℃ to 125℃; (7)TJ Maximum junction temperature: 150℃; (8)Tstg Storage temperature range: -65℃ to 150℃.
Features
TLV2622IDR features: (1)CMOS Rail-To-Rail Output; (2)VICR Includes Positive Rail; (3)Wide Bandwidth: 11 MHz; (4)Slew Rate: 10 V/μs; (5)Supply Current: 800 μA/Channel; (6)Ultralow Power-Down Mode: IDD(SHDN) = 4 μA/Channel; (7)Supply Voltage Range: 2.7 V to 5.5 V; (8)Specified Temperature Range: -40℃ to 125℃ Industrial Grade; (9)Universal Opamp EVM (See SLOU060 for More Information).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV2622IDR |
Texas Instruments |
Operational Amplifiers - Op Amps 800 uA/ch 11MHz RRO Low Vltg Dual Ch |
Data Sheet |
|
|
||||||||||||
|
TLV2622IDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps 800 uA/ch 11MHz RRO Low Vltg Dual Ch |
Data Sheet |
|
|
||||||||||||
