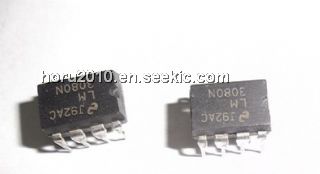

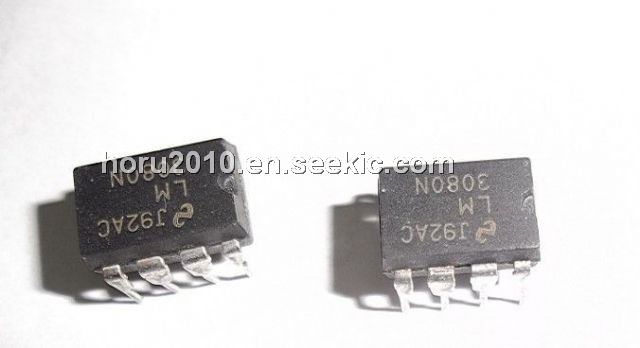

LM3080

LM3080, Operational Transconductance Amplifier, DIP8, 250 mW, 2mA, ±18V, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.48~0.79 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.79 / Piece
10 ~ 100 :	0.64 / Piece
100 ~ 1000 :	0.48 / Piece

PartNumber:: LM3080

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: LM3080 Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-26

From Other Seller

Part Number:LM3080
US $0.48 - 0.79
LM3080N

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM3080 is a programmable transconductance block intended to fulfill a wide variety of variable gain applications. The device has differential inputs and high impedance push-pull outputs. The LM3080 has high input impedance and its transconductance (gm) is directly proportional to the amplifier bias current (IABC). High slew rate together with programmable gain make the LM3080 an ideal choice for variable gain applications such as sample and hold, multiplexing, filtering, and multiplying.

Parametrics

LM3080 absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: 250 mW; (3)Differential Input Voltage: ±5V; (4)Amplifier Bias Current (IABC): 2mA; (5)DC Input Voltage: +VS to -VS; (6)Operating Temperature Range: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 10 sec.): 260℃.

Features

LM3080 features: (1)Slew rate (unity gain compensated): 50 V/μs; (2)Fully adjustable gain: 0 to gm . RL limit; (3)Extended gm linearity: 3 decades; (4)Flexible supply voltage range: ±2V to ±18V; (5)Adjustable power consumption.
