Product Summary

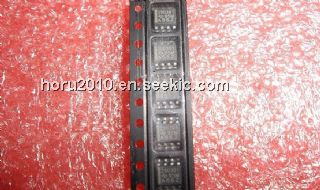

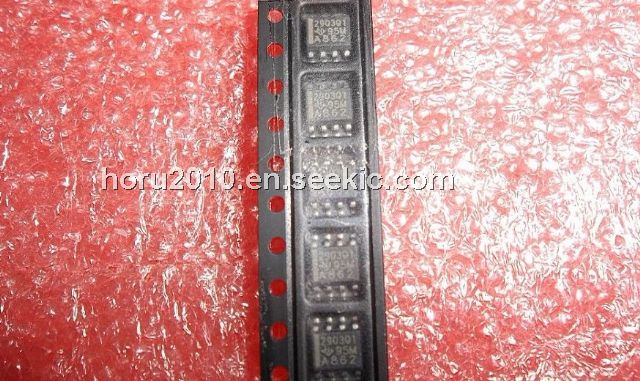

The LM2903QDRQ1 is a dual differential comparator. The LM2903QDRQ1 consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

Parametrics

LM2903QDRQ1 absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage range, VI (either input): -0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground: Unlimited; (7)Package thermal impedance, θJA (see Note 4): D package 97℃/W; (8)PW package: 149℃/W; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or PW package: 260℃; (10)Storage temperature range, Tstg: -65℃ to 150℃.

Features

LM2903QDRQ1 features: (1)Qualified for Automotive Applications; (2)ESD Protection Exceeds 1000 V Per MIL-STD-883, Method 3015; Exceeds 100 V Using Machine Model (C = 200 pF, R = 0); (3)Single Supply or Dual Supplies; (4)Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA Typ Per Comparator; (5)Low Input Bias Current: 25 nA Typ; (6)Low Input Offset Current: 5 nA Typ; (7)Low Input Offset Voltage: 2 mV Typ; (8)Common-Mode Input Voltage Range Includes Ground; (9)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V; (10)Low Output Saturation Voltage; (11)Output Compatible With TTL, MOS, and CMOS.

Diagrams

LM2903QDRQ1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM2903QDRQ1
LM2903QDRQ1
Texas Instruments
Comparator ICs Auto Cat Dual Diff Comparator
Data Sheet
0-1: $0.29
1-25: $0.22
25-100: $0.19
100-250: $0.16
