Product Summary
The KA5L0565RYDTU is a Fairchild Power Switch. The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consists of a high voltage power SenseFET and a current mode PWM IC. Included PWM controller integrates the fixed frequency oscillator, the under voltage lock-out, the leading edge blanking, the optimized gate turn-on/turn-off driver, the thermal shutdown protection, the over voltage protection, and the temperature compensated precision current sources for the loop compensation and the fault protection circuitry. Compared to a discrete MOSFET and a PWM controller or an RCCsolution, a Fairchild Power Switch(FPS) can reduce the total component count, design size and weight and at the same time increase efficiency, productivity, and system reliability. It has a basic platform well suited for the cost effective design in a flyback converter.
Parametrics
KA5L0565RYDTU absolute maximum ratings: (1)Drain-Gate Voltage (RGS=1MΩ) : 650 V; (2)Gate-Source (GND) Voltage : ±30 V; (3)Drain Current Pulsed (2) : 20 ADC; (4)Single Pulsed Avalanche Current : 13(400) A(mJ); (5)Continuous Drain Current (TC=25℃) : 5.0 ADC; (6)Continuous Drain Current (TC=100℃) : 3.5 ADC; (7)Maximum Supply Voltage : 30 V; (8)Input Voltage Range : -0.3 to VSD V; (9)Total Power Dissipation : 38 W; (10)Operating Ambient Temperature : -25 to +85 ℃; (11)Storage Temperature : -55 to +150 ℃.
Features
KA5L0565RYDTU features: (1)Precision Fixed Operating Frequency (50kHz); (2)Low Start-up Current(Typ. 100uA); (3)Pulse by Pulse Current Limiting; (4)Over Current Protection; (5)Over Voltage Protection (Min. 25V); (6)Internal Thermal Shutdown Function; (7)Under Voltage Lockout; (8)Internal High Voltage Sense FET; (9)Auto-Restart Mode.

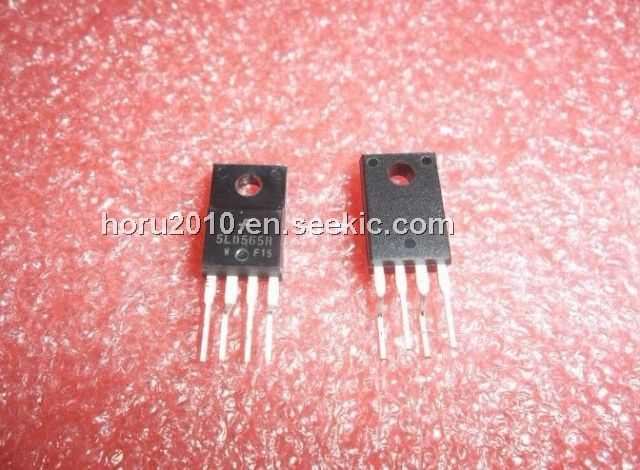

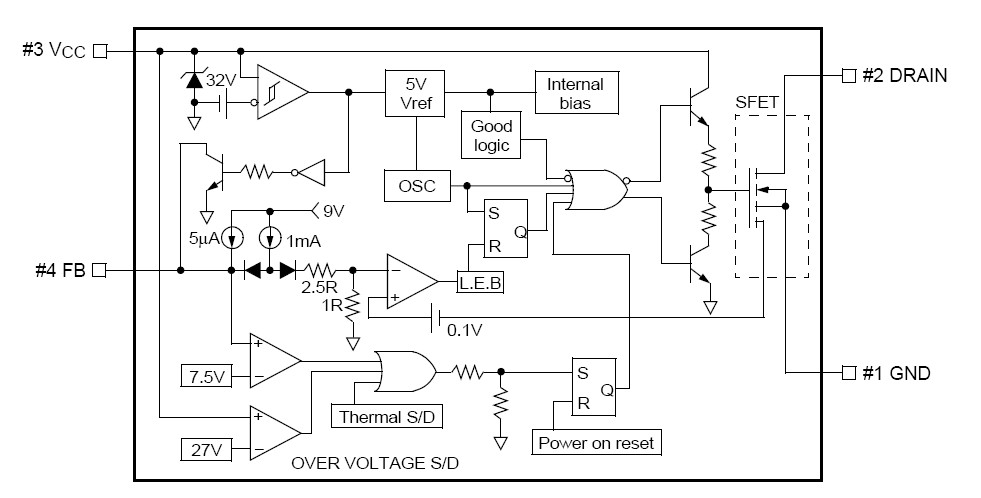

Diagrams

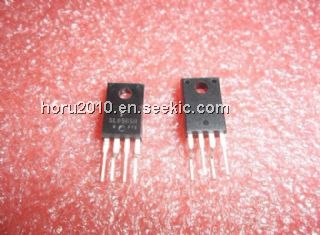

Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KA5L0565RYDTU |
Fairchild Semiconductor |
Power Switch ICs - Power Distribution FPS FOR DVDP/STB |
Data Sheet |
|
|
|||||||||||||
