Product Summary
The HWS433 is a GaAs PHEMT 2x2 switch matrix operating at 0.95 to 2.15 GHz in a low cost TSSOP-16 plastic lead (Pb) free package. Any of the two inputs can be directed to any of the two outputs. The HWS433 is suitable for use in Direct Broadcast Satellite (DBS) switching system or CATV applications.
Parametrics
HWS433 absolute maximum ratings: (1)RF Input Power:+15 dBm @ +6V; (2)Control Voltage:+6V; (3)Operating Temperature:-40 to +85℃; (4)Storage Temperature:-65 to +150℃.
Features
HWS433 features: (1)Two Inputs, Two Outputs Switch Matrix; (2)High Isolation; (3)Low DC Power Consumption; (4)Small TSSOP-16 Plastic Lead(Pb) Free Package; (5)PHEMT process; (6)Lead Free and RoHS Compliant Version of HWS417.

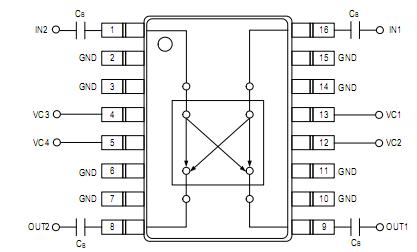

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HWS433 |
Other |
|
Data Sheet |
Negotiable |
|
||||
