Product Summary

The FAN6754MRMY is a Highly Integrated Green-Mode PWM Controller. To minimize standby power consumption, a proprietary green-mode function provides off-time modulation to continuously decrease the switching frequency under light-load conditions. Under zero-load and very light-load conditions, The FAN6754MRMY saves PWM pulses by entering deep burst mode. This burst mode function enables the power supply to meet international power conservation requirements. The applications is Power Adapters.

Parametrics

FAN6754MRMY absolute maximum ratings: (1)VVDD DC Supply Voltage(1, 2): 30 V; (2)VFB FB Pin Input Voltage: -0.3, 7.0 V; (3)VSENSE SENSE Pin Input Voltage: -0.3, 7.0 V; (4)VRT RT Pin Input Voltage: -0.3, 7.0 V; (5)VHV HV Pin Input Voltage: 500 V; (6)PD Power Dissipation (TA＜50℃): 400 mW; (7)ΘJA Thermal Resistance (Junction-to-Air 141 ℃/W.

Features

FAN6754MRMY features: (1)Low Operating Current: 1.7mA; (2)Linearly Decreasing PWM Frequency to 22KHz; (3)Frequency Hopping to Reduce EMI Emission; (4)Fixed PWM Frequency: 65KHz; (5)Peak-Current-Mode Control; (6)Cycle-by-Cycle Current Limiting; (7)Leading-Edge Blanking (LEB); (8)Internal Open-Loop Protection; (9)GATE Output Maximum Voltage Clamp: 13V; (10)VDD Under-Voltage Lockout (UVLO); (11)VDD Over-Voltage Protection (OVP).

Diagrams

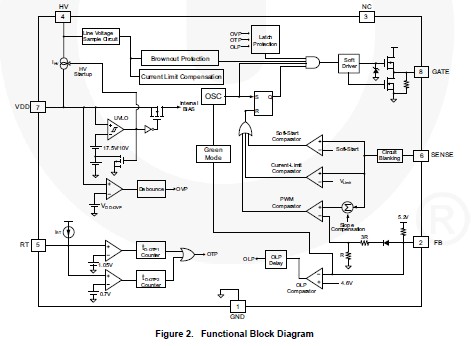

FAN6754MRMY pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FAN6754MRMY
FAN6754MRMY

IC CTLR PWM GREEN MODE 8-SOIC
Data Sheet
Negotiable
