Product Summary
The EM78P459AkJ-G is an 8-bit micro-controller. It is designed and developed with low-power and high-speed CMOS technology. The EM78P459AkJ-G is equipped with a 4K×13-bit Electrical One Time Programmable Read Only Memory (OTP-ROM). With its OTP-ROM feature, the EM78P459AkJ-G is able to offer a convenient way of developing and verifying user’s programs. Moreover, user can take advantage of EMC Writer to easily program his development code.
Parametrics
EM78P459AkJ-G absolute maximum ratings: (1)Temperature under bias: 0℃ to 70℃; (2)Storage temperature: -65℃ to 150℃; (3)Input voltage: -0.3V to +6.0V; (4)Output voltage: -0.3V to +6.0V.
Features
EM78P459AkJ-G features: (1)Operating voltage range: 2.3V to 5.5V; (2)Operating temperature range: 0℃ to 70℃; (3)Operating frequency range(base on 2 clocks): Crystal mode; RC mode; (4)Low power consumption; (5)2 bi-directional I/O ports; (6)8 level stacks for subroutine nesting; (7)8-bit real time clock/counter (TCC) with selective signal sources, trigger edges, and overflow interrupt; (8)8-bit multi-channel Analog-to-Digital Converter with 8bit resolution; (9)Dual Pulse Width Modulation (PWM ) with 10-bit resolution; (10)One pair of comparators; (11)Power-down (SLEEP) mode; (12)Six available interruptions; (13)Programmable free running watchdog timer; (14)8 Programmable pull-down I/O pins; (15)7 programmable pull-high I/O pins; (16)8 programmable open-drain I/O pins; (17)Two clocks per instruction cycle; (18)24 pin skinny DIP 300mil.

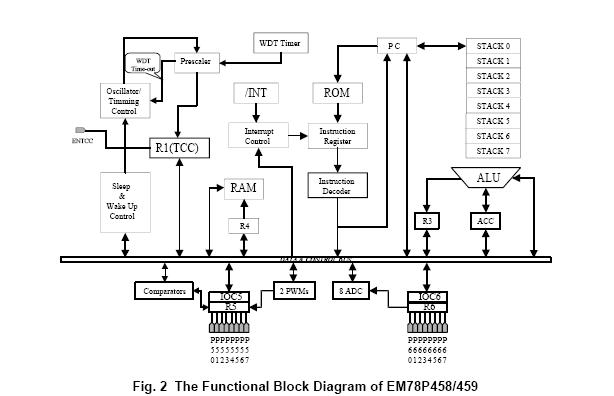

Diagrams
 |
