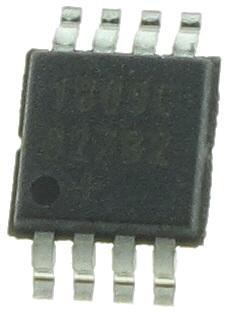

DS1809U-100+

DS1809U-100+, 64-position linear taper, -1.0V to +7.0V, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.09~2.38 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.38 / Piece
10 ~ 100 :	2.09 / Piece

PartNumber:: DS1809U-100+

Brand:: Maxim Integrated Products - Maxim | Pack: | D/C:

Availability:: Supply Ability: 1/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-06

From Other Seller

Part Number:DS1809U-100+
US $2.09 - 2.38
Quantity:

piece

Product Summary

The DS1809U-100+ is a nonvolatile digitally controlled potentiometer that provides 64 uniform wiper positions over the entire resistor range; including the high-end and low-end terminals of the device. The DS1809U-100+ is a low power, low voltage device capable of operating from power supplies of +2.7V to +5.5V. The device is ideal for low-power, portable, or battery powered applications. Wiper position is maintained in the absence of power. This is accomplished via the use of an EEPROM cell array. The device provides for two storage methods, which include an auto-store capability and a command-initiated storage function.

Parametrics

DS1809U-100+ absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -1.0V to +7.0V; (2)Operating Temperature: -40℃ to +85℃; industrial; (3)Storage Temperature: -55℃ to +125℃; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS1809U-100+ features: (1)64-position linear taper; (2)Two nonvolatile wiper storage options; (3)Operates from +2.7 to +5.5-volt supplies; (4)Operating Temperature Range: Industrial: -40℃ to +85℃; (5)Electronic interface provides either digital or pushbutton control; (6)Low-cost alternative to mechanical solutions; (7)Standard Resistance Values.
