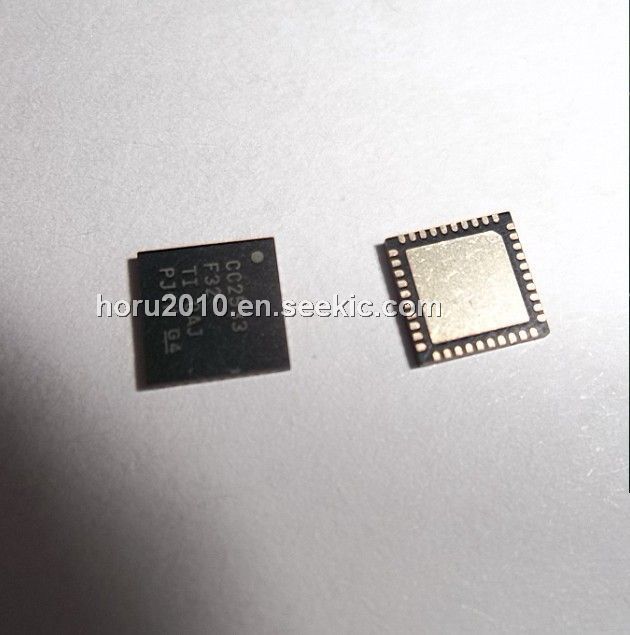

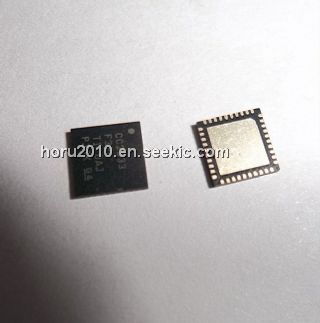

CC2533

CC2533, optimized system-on-chip solution, 40VQFN, 4.5 dBm, –0.3 to 3.9 V, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~6.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	6.45 / Piece
10 ~ 100 :	5.64 / Piece
100 ~ 1000 :	3.50 / Piece

PartNumber:: CC2533

Brand:: Texas Instruments - TI | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: CC2533 Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-22

From Other Seller

Part Number:CC2533
US $3.50 - 6.45
Quantity:

piece

Product Summary

The CC2533 is an optimized system-on-chip (SoC) solution for IEEE 802.15.4 based remote-control systems. It enables single-chip remote controls to be built with low bill-of-material cost when used as a flexible SoC. The CC2533 also provides a simple path to adding RF4CE capability to a device or target when used in the wireless network processor configuration of the RemoTI RF4CE stack. Robust network nodes can be built with very low total bill-of-material costs. The applications of the CC2533 include ZigBee RF4CE Remote Control Target and Device, 2.4-GHz IEEE 802.15.4 Systems Based on TIMAC or SimpliciTI Network Protocol, Consumer Electronics, Electronic Shelf Labeling.

Parametrics

CC2533 absolute maximum ratings: (1)Supply voltage: –0.3 to 3.9 V; (2)Voltage on any digital pin: –0.3 to VDD + 0.3, ≤ 3.9 V; (3)Input RF level: 10 dBm; (4)Storage temperature range: –40 to 125 ℃; (5)ESD All pads, according to human-body model, JEDEC STD 22, method A114: 2 kV.

Features

CC2533 features: (1)2.4-GHz IEEE 802.15.4 Compliant RF Transceiver; (2)Excellent Receiver Sensitivity and Robustness to Interference; (3)Programmable Output Power Up to 4.5 dBm; (4)Boost-Mode TX at 7 dBm; (5)Very Few External Components; (6)Only a Single Crystal Needed for Asynchronous Networks; (7)Space-Saving 6-mm × 6-mm QFN40 Package; (8)Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T-66 (Japan); (9)Pin- and Software-Compatible With the CC2530Fxxx Series.
