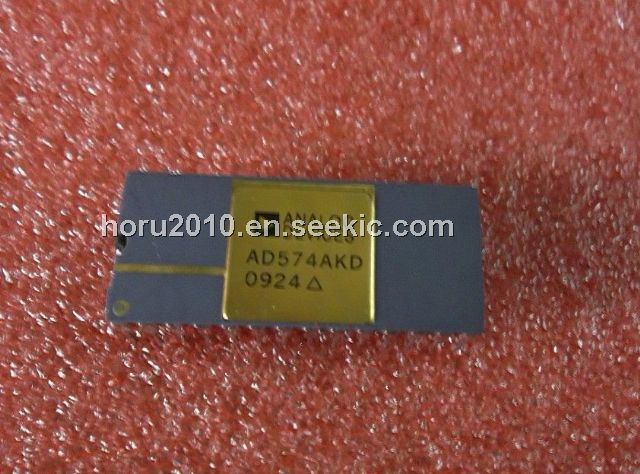

AD574AKD

AD574AKD, 12-bit, successive-approximation analog-to-digital converter, DIP, 0 to 7V, 825W, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $23.38~32.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9 :	32.25 / Piece
10 ~ 50 :	23.38 / Piece

PartNumber:: AD574AKD

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 50/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-21

From Other Seller

Part Number:AD574AKD
US $23.38 - 32.25
Quantity:

piece

Product Summary

The AD574AKD is a complete 12-bit successive-approximation analog-to-digital converter with 3-state output buffer circuitry for direct interface to an 8- or 16-bit microprocessor bus. A high precision voltage reference and clock are included on-chip, and the circuit guarantees full-rated performance without external circuitry or clock signals. The AD574AKD is available in six different grades. The AD574AKD is specified for operation over the 0 to +70℃ temperature range. The AD574AS, T, and U are specified for the –55 to +125℃ range. All grades are available in a 28-pin hermetically-sealed ceramic DIP. Also, the J, K, and L grades are available in a 28-pin plastic DIP and PLCC, and the J and K grades are available in ceramic LCC.

Parametrics

AD574AKD absolute maximum ratings: (1)VCC to Digital Common: 0 V to +16.5 V; (2)VEE to Digital Common: 0 V to –16.5 V; (3)VLOGIC to Digital Common: 0 V to +7 V; (4)Analog Common to Digital Common: ±1 V; (5)Control Inputs (CE, CS, AO 12/8, R/C) to Digital Common: –0.5 V to VLOGIC + 0.5 V; (6)Analog Inputs (REF IN, BIP OFF, 10 VIN) to Analog Common: VEE to VCC 20 VIN to Analog Common: ±24 V; (7)REF OUT: Indefinite Short to Common; (8)Momentary Short to VCC Chip Temperature: 175℃; (9)Power Dissipation: 825 mW; (10)Lead Temperature (Soldering, 10 sec): +300℃; (11)Storage Temperature (Ceramic): –65 to +150℃; (12)(Plastic) : –25 to +100℃.
