Product Summary

The AD526JN is a Software Programmable Gain Amplifier. The AD526JN is a single-ended, monolithic software programmable gain amplifier (SPGA) that provides gains of 1, 2, 4, 8 and 16. It is complete, including amplifier, resistor network and TTL-compatible latched inputs, and requires no external components.

Parametrics

AD526JN absolute maximum ratings: (1)Input Offset Voltage: 0.4 to 1.5 mV; (2)Input Offset Voltage Drift Over Temperature: 5 to 20 μV/℃; (3)INPUT BIAS CURRENT Over Input Voltage Range ± 10 V: 50 to 150 pA.

Features

AD526JN features: (1)Digitally Programmable Binary Gains from 1 to 16; (2)Two-Chip Cascade Mode Achieves Binary Gain from 1 to 256; (3)Low Nonlinearity: 60.005% FSR Max (J Grade); (4)TTL-Compatible Digital Inputs.

Diagrams

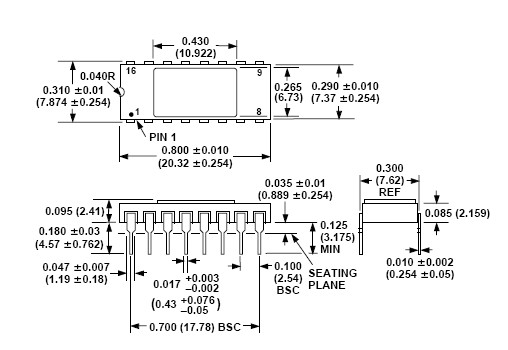

AD526JN dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD526JNZ
AD526JNZ

IC AMP PGA 10MA 16DIP
Data Sheet
0-1: $7.83
1-25: $6.58
25-100: $6.05
100-250: $5.52
250-500: $5.16
500-1000: $4.74
AD526JN
AD526JN

IC AMP PGA 10MA 16DIP
Data Sheet
0-25: $7.45
