Product Summary

The 74LV06 is a HEX inverter buffer/driver with open-drain outputs. The 74LV06 is fully specified for partial-power-down applications using Ioff.

Parametrics

74LV06 absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5 V to 7 V; (4)Input clamp current, IIK (VI < 0): 20 mA; (5)Output clamp current, IOK (VO < 0): 50 mA; (6)Continuous output current, IO (VO = 0 to VCC): 35 mA; (7)Continuous current through VCC or GND: ±50 mA; (8)Package thermal impedance, θJA D package: 86℃/W; (9)Package thermal impedance, θJA DB package: 96℃/W; (10)Package thermal impedance, θJA DGV package: 127℃/W; (11)Package thermal impedance, θJA NS package: 76℃/W; (12)Package thermal impedance, θJA PW package: 113℃/W; (13)Storage temperature range, Tstg: 65℃ to 150℃.

Features

74LV06 features: (1)2-V to 5.5-V VCC Operation; (2)Max tpd of 6.5 ns at 5 V; (3)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (4)Typical VOHV (Output VOH Undershoot) >2.3 V at VCC = 3.3 V, TA = 25℃; (5)Outputs Are Disabled During Power Up and Power Down With Inputs Tied to GND; (6)Support Mixed-Mode Voltage Operation on All Ports; (7)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

Diagrams

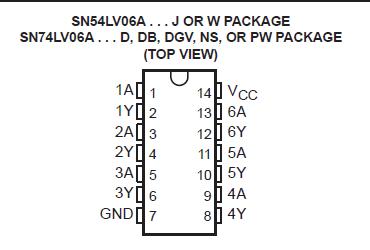

74LV06 block diagram
