Product Summary

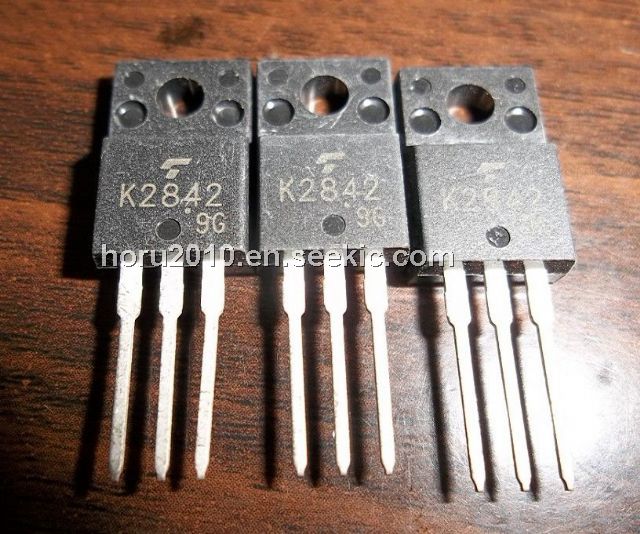

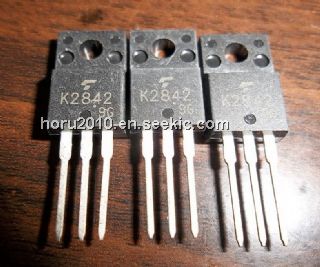

The 2sk2842 is a Silicon N-channel transistor.
Parametrics
2sk2842 absolute maximum ratings: (1)Drain-source voltage, VDSS: 500V; (2)Drain-gate voltage, VDGR: 500V; (3)Gate-source voltage, VGSS: ±30V; (4)Drain current, DC, ID: 12A; Pulse, IDP: 48A; (5)Drain power dissipation, PD: 40W; (6)Single pulse avalanche energy, EAS: 364mJ; (7)Avalanche current, IAR: 12A; (8)Repetitive avalanche energy, EAR: 4mJ; (9)Channel temperature, Tch: 150℃; (10)Storage temperature range, Tstg: -55 to 150℃.
Features
2sk2842 features: (1)Low drain-source On resistance: RDS(ON)=0.4Ω; (2)High forward transfer admittance: Yfs=9.0S; (3)Low leakage current: IDSS=100μA; (4)Enhancement-mode: Vth=2.0 to 4.0V.

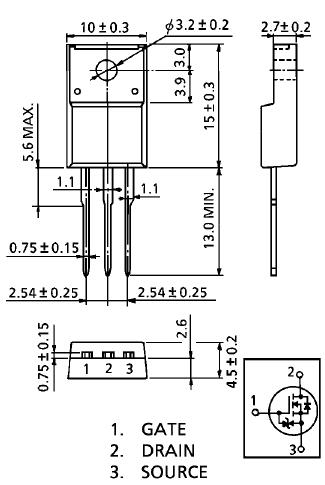

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK2842 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SK2842(Q,T) |
Toshiba |
MOSFET MOSFET N-Ch 500V 12A Rdson 0.52 Ohm |
Data Sheet |
Negotiable |
|
||||
